Exam 11: Properties of Light

Use the following figure to answer the next problem. -If the index of refraction of the glass plate shown is 1.45, the angle of incidence $\theta$ ₁that will cause the unpolarized light to be reflected as completely plane-polarized light is

If you look at a dot on a piece of paper through a calcite crystal lying on the paper, you will see two images of the dot, one of which appears to be nearer to you than the other. From this evidence you can conclude that

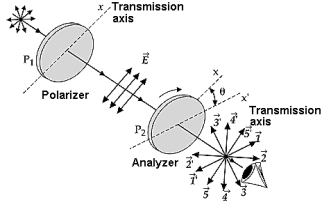

Two polarizing films are crossed with their transmission axes making an angle of $\theta$ = 20° with each other. The vectors that represent the plane-polarized wave train passed by the second polarizing film are

The index of refraction of water is 1.33. The angle of incidence for maximum polarization by reflection is approximately

A ray of light passes from air into water, striking the surface of the water with an angle of incidence of 45º. Which of the following four quantities change as the light enters the water: (1) wavelength, (2) frequency, (3) speed of propagation, and (4) direction of propagation?

The light ray that passes through the prism and emerges at the angle of minimum deviation for that color is

A small beam of monochromatic light in air is incident on a large plate of glass with plane-parallel sides at an angle of 30º. The index of refraction of the glass plate for this wavelength is 1.50. The angle of emergence of the light on the far side of the plate is approximately

Light is circularly polarized if

A ray of light strikes a water-glass interface at an angle of incidence of 35º. The angle of refraction is

When taking a picture of a highly reflecting surface, it is desirable to use a polarizer in front of the camera to cut down on the "glare". Suppose you are taking a picture of a lake where the water is very still. The polarizing axis of the polarizer should ideally be oriented

Of the following quantities, the one that is independent of the frequency of light is the

The light ray in the figure is incident on a glass-air surface. The index of refraction of the glass is 1.74. The approximate critical angle for total internal reflection is

A 60 $\degree$ prism has a refractive index of 1.64 for blue light and 1.61 for red light. Calculate the difference in the angle of incidence for the initial red and blue light ray that is refracted inside the prism and just undergoes total internal reflection at the opposite face of the prism.

A light ray makes an angle of 42º with the normal to a glass-water surface on the glass side of the surface. The angle $\theta$ in the water is

The speed of yellow sodium light in a certain liquid is 1.92 * 10⁸ m/s. With respect to air, the index of refraction of this liquid for sodium light is approximately

A ray of unpolarized light is incident on a glass block at an angle of incidence in such a way that the reflected ray is completely plane polarized. The ray that represents the refracted ray is

The dependence of the index of refraction on wavelength is called dispersion. A beam of light (in air) containing red and blue light is incident at an angle of 35 $\degree$ 0 on a glass plate that has an index of refraction of 1.64 for blue light and 1.61 for red light. By what percent does the speed of the red light exceed that of the blue light inside the glass, i.e. calculate (v(red)-v(blue) ) * 100 / v(red)?

The critical angle for light rays passing from flint glass (n = 1.70) into air is about

As light passes from one medium into another, the angle of refraction is _____ in the medium with the _____ index of refraction and _____ speed of light.

If light reflected from a transparent substance at an angle of 58.0º is completely plane polarized, light incident at an angle of 32.0º is refracted at an angle of
