An object with an initial velocity of 12 m/s west experiences a constant acceleration of 4 m/s2 west for 3 seconds. During this time the object travels a distance of:

A) 18 m B) 24 m C) 36 m D) 54 m E) 144 m A) 18 m B) 24 m C) 36 m D) 54 m E) 144 m

An object is thrown straight up from ground level with a speed of 50 m/s. If g = 10 m/s2 its distance above ground level 1.0 second later is:

A) 40 m B) 45 m C) 50 m D) 55 m E) 60 m A) 40 m B) 45 m C) 50 m D) 55 m E) 60 m

At time t = 0 a car has a velocity of 16 m/s. It slows down with an acceleration given by a = -0.50t, in m/s2 for t in seconds. At the end of 4.0 s it has traveled:

A) 0 B) 12 m C) 14 m D) 25 m E) 59 m A) 0 B) 12 m C) 14 m D) 25 m E) 59 m

An object is thrown straight up from ground level with a speed of 50 m/s. If g = 10 m/s2 its distance above ground level 6.0 s later is:

A) 0.00 m B) 270 m C) 330 m D) 480 m E) none of these A) 0.00 m B) 270 m C) 330 m D) 480 m E) none of these

Exam 2: Motion Along a Straight Line

Explore all topics

As a rocket is accelerating vertically upward at 9.8 m/s² near the Earth's surface, it releases a projectile. Immediately after release the acceleration of the projectile is:

(Multiple Choice)

4.8/5

(33)

Question 21

The coordinate-time graph of an object is a straight line with a positive slope. The object has:

(Multiple Choice)

4.9/5

(41)

Question 22

An object is dropped from rest. Which of the five following graphs correctly represents its motion? The positive direction is taken to be upward. Take careful note of the axes.

(Multiple Choice)

4.8/5

(37)

Question 23

At a stop light, a truck traveling at 15 m/s passes a car as it starts from rest. The truck travels at constant velocity and the car accelerates at 3 m/s². How much time does the car take to catch up to the truck?

(Multiple Choice)

4.7/5

(24)

Question 24

What is the relationship between instantaneous speed and instantaneous velocity?

(Multiple Choice)

4.8/5

(25)

Question 25

An object starts from rest at the origin and moves along the x axis with a constant acceleration of 4 m/s². Its average velocity as it goes from x = 2 m to x = 8 m is:

(Multiple Choice)

4.7/5

(35)

Question 26

Throughout a time interval, while the speed of a particle increases as it moves along the x axis, its velocity and acceleration could be:

(Multiple Choice)

4.7/5

(31)

Question 27

A projectile is shot vertically upward with a given initial velocity. It reaches a maximum height of 100 m. If on a second shot the initial velocity is doubled, then the projectile will reach a maximum height of:

(Multiple Choice)

4.8/5

(27)

Question 28

Which of the following five coordinate versus time graphs represents the motion of an object moving with a constant nonzero speed?

(Multiple Choice)

4.8/5

(42)

Question 29

An elevator is moving upward with constant acceleration. The dashed curve shows the position y of the ceiling of the elevator as a function of the time t. At the instant indicated by the dot, a bolt breaks loose and drops from the ceiling. Which curve best represents the position of the bolt as a function of time?

(Multiple Choice)

4.8/5

(36)

Question 30

A feather, initially at rest, is released in a vacuum 12 m above the surface of the Earth. Which of the following statements is correct?

(Multiple Choice)

4.9/5

(33)

Question 31

An object with an initial velocity of 12 m/s west experiences a constant acceleration of 4 m/s² west for 3 seconds. During this time the object travels a distance of:

(Multiple Choice)

4.7/5

(26)

Question 32

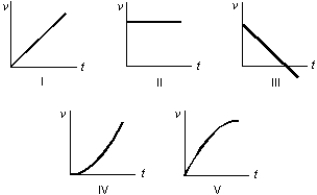

An object is thrown vertically into the air. Which of the following five graphs represents the velocity (v) of the object as a function of the time (t)? The positive direction is taken to be upward.

(Multiple Choice)

4.9/5

(26)

Question 33

An object is thrown straight up from ground level with a speed of 50 m/s. If g = 10 m/s² its distance above ground level 1.0 second later is:

(Multiple Choice)

4.9/5

(43)

Question 34

A stone is released from rest from the edge of a building roof 190 m above the ground. Neglecting air resistance, the speed of the stone, just before striking the ground, is:

(Multiple Choice)

4.9/5

(37)

Question 35

A stone is dropped from a cliff. The graph (carefully note the axes) that best represents its motion while it falls is:

(Multiple Choice)

4.7/5

(29)

Question 36

At time t = 0 a car has a velocity of 16 m/s. It slows down with an acceleration given by a = -0.50t, in m/s² for t in seconds. At the end of 4.0 s it has traveled:

(Multiple Choice)

4.8/5

(31)

Question 37

An object is thrown straight up from ground level with a speed of 50 m/s. If g = 10 m/s² its distance above ground level 6.0 s later is:

(Multiple Choice)

4.8/5

(33)

Question 38

A ball is in free fall motion. Upward is taken to be the positive direction. The displacement of the ball is:

(Multiple Choice)

4.7/5

(36)

Question 39

Displacement can be obtained from:

(Multiple Choice)

4.8/5

(32)

Question 40

Showing 21 - 40 of 90

Exam 2: Motion Along a Straight Line

As a rocket is accelerating vertically upward at 9.8 m/s2 near the Earth's surface, it releases a projectile. Immediately after release the acceleration of the projectile is:

The coordinate-time graph of an object is a straight line with a positive slope. The object has:

An object is dropped from rest. Which of the five following graphs correctly represents its motion? The positive direction is taken to be upward. Take careful note of the axes.

At a stop light, a truck traveling at 15 m/s passes a car as it starts from rest. The truck travels at constant velocity and the car accelerates at 3 m/s2. How much time does the car take to catch up to the truck?

What is the relationship between instantaneous speed and instantaneous velocity?

An object starts from rest at the origin and moves along the x axis with a constant acceleration of 4 m/s2. Its average velocity as it goes from x = 2 m to x = 8 m is:

Throughout a time interval, while the speed of a particle increases as it moves along the x axis, its velocity and acceleration could be:

A projectile is shot vertically upward with a given initial velocity. It reaches a maximum height of 100 m. If on a second shot the initial velocity is doubled, then the projectile will reach a maximum height of:

Which of the following five coordinate versus time graphs represents the motion of an object moving with a constant nonzero speed?

A feather, initially at rest, is released in a vacuum 12 m above the surface of the Earth. Which of the following statements is correct?

An object with an initial velocity of 12 m/s west experiences a constant acceleration of 4 m/s2 west for 3 seconds. During this time the object travels a distance of:

An object is thrown vertically into the air. Which of the following five graphs represents the velocity (v) of the object as a function of the time (t)? The positive direction is taken to be upward.

An object is thrown straight up from ground level with a speed of 50 m/s. If g = 10 m/s2 its distance above ground level 1.0 second later is:

A stone is released from rest from the edge of a building roof 190 m above the ground. Neglecting air resistance, the speed of the stone, just before striking the ground, is:

A stone is dropped from a cliff. The graph (carefully note the axes) that best represents its motion while it falls is:

At time t = 0 a car has a velocity of 16 m/s. It slows down with an acceleration given by a = -0.50t, in m/s2 for t in seconds. At the end of 4.0 s it has traveled:

An object is thrown straight up from ground level with a speed of 50 m/s. If g = 10 m/s2 its distance above ground level 6.0 s later is:

A ball is in free fall motion. Upward is taken to be the positive direction. The displacement of the ball is:

Displacement can be obtained from:
