Question 1

Show two methods of naming triangles.

Accepted Answer

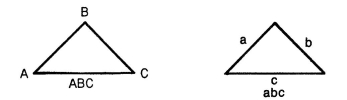

. Triangles are named by lettering the vertex of each angle, or by labeling the sides.

Question 2

Compare the characteristics of a square and rectangle.

Accepted Answer

. A square has four equal sides and four 90º angles. A rectangle has four 90º angles and sides, creating a different length and width.

Question 3

How are angles sized?

Accepted Answer

Angles are sized in degrees.

Question 4

Define parallel lines.

Accepted Answer

Parallel lines are lines equid

Question 5

Define perpendicular.

Accepted Answer

Perpendicu

Question 6

How many degrees are there in a circle?

Accepted Answer

A circle h

Question 7

What is the name of the distance that goes across a circle through its center?

Accepted Answer

. The diameter is th

Question 8

What is a circle called that touches the flats of a polygon?

Accepted Answer

. An inscribed circl

Question 9

What is a circle called that touches the corners of a polygon?

Accepted Answer

. A circumscribed ci

Question 10

What is known to be true about the opposite angles created by intersecting lines?

Accepted Answer

The opposite angles

Question 11

Identify the angle formed by a perpendicular bisector. 59728_ch07_EOC_ptg01.indd 1 03/02/16 10:24 am

Accepted Answer

The answer of Identify the angle formed by a perpendicular...

Question 12

Name three types of quadrilaterals.

Accepted Answer

. Four types of quadrilaterals: 1. A squ

Question 13

Name four basic types of angles.

Accepted Answer

The answer of Name four basic types of angles....

Question 14

Give the number of sides found on each of the following regular polygons: triangle, square, pentagon, hexagon, and octagon.

Accepted Answer

The answer of Give the number of sides found on...

Question 15

What name is given to the distance from the center to the circumference of a circle?

Accepted Answer

. The radius is the

Question 16

Define triangle.

Accepted Answer

A triangle is a geometric figu

Question 17

Sketch and label an example of concentric and eccentric circles.

Accepted Answer

. Concentric circles

Question 18

Name and show an example of three types of triangles.

Accepted Answer

Three type

Question 19

Show how an angle is named.

Accepted Answer

An angle is named by giving th

Question 20

Sketch an example of a line tangent to a circle and two circles tangent to each other.

Accepted Answer

. A line tangent to

Exam 7: Drafting Geometry

Show two methods of naming triangles.

Compare the characteristics of a square and rectangle.

How are angles sized?

Define parallel lines.

Define perpendicular.

How many degrees are there in a circle?

What is the name of the distance that goes across a circle through its center?

What is a circle called that touches the flats of a polygon?

What is a circle called that touches the corners of a polygon?

What is known to be true about the opposite angles created by intersecting lines?

Identify the angle formed by a perpendicular bisector. 59728_ch07_EOC_ptg01.indd 1 03/02/16 10:24 am

Name three types of quadrilaterals.

Name four basic types of angles.

Give the number of sides found on each of the following regular polygons: triangle, square, pentagon, hexagon, and octagon.

What name is given to the distance from the center to the circumference of a circle?

Define triangle.

Sketch and label an example of concentric and eccentric circles.

Name and show an example of three types of triangles.

Show how an angle is named.

Sketch an example of a line tangent to a circle and two circles tangent to each other.
