Exam 2: Describing Motion: Kinematics in One Dimension

A dielectric material such as paper is inserted between the plates of a capacitor as the capacitor holds a fixed charge on its plates. What happens to the electric field between the plates as the Dielectric is inserted?

What must be your average speed in order to travel 350 km in 5.15 h?

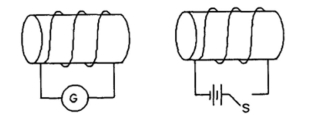

Two solenoids are close to each other, as shown in the figure, with the switch S open. When the switch is suddenly closed, which way will the induced current flow through the galvanometer in The left-hand solenoid?

If a woman weighs 125 lb, her mass expressed in kilograms is x kg, where x is

A 1.53-kg piece of iron is hung by a vertical ideal spring. When perturbed slightly, the system is moves up and down in simple harmonic oscillations with a frequency of 1.95 Hz and an amplitude Of 7.50 cm. If we choose the total potential energy (elastic and gravitational) to be zero at the Equilibrium position of the hanging iron, what is the total mechanical energy of the system?

A 10-kg rock and a 20-kg rock are dropped at the same time and experience no significant air resistance. If the 10-kg rock falls with acceleration a , what is the acceleration of the 20-kg rock?

As more resistors are added in series to a constant voltage source, the power supplied by the source

An ideal Carnot air conditioner operates between an indoor temperature of 20°C and an outdoor temperature of 39°C. How much energy does it use to remove 2000 J of heat from the interior of The house?

The current definition of the standard second of time is based on

A jet plane is launched from a catapult on an aircraft carrier. In 2.0 s it reaches a speed of 42 m/s at the end of the catapult. Assuming the acceleration is constant, how far did it travel during those 2)0 s?

A generator produces 60 A of current at 120 V. The voltage is usually stepped up to 4500 V by an ideal transformer and transmitted through a power line of total resistance 1.0 Ω. Find the number Of turns in the secondary if the primary has 200 turns.

Salt water is denser than fresh water. A ship floats in both fresh water and salt water. Compared to the fresh water, the volume of water displaced in the salt water is

Two objects are dropped from a bridge, an interval of 1.0 s apart. Air resistance is negligible. During the time that both objects continue to fall, their separation

A flat coil is in a uniform magnetic field. The magnetic flux through the coil is greatest when the plane of its area is

What is the voltage drop across a 5.0-Ω resistor if the current through it is 5.0 A?

A piano wire of linear mass density 0.0050 kg/m is under a tension of 1350 N. What is the wave speed in this wire?

A waiter fills your water glass with ice water (containing many ice cubes) such that the liquid water is perfectly level with the rim of the glass. As the ice melts,

A resistor and an inductor are connected in series to a battery. The battery is suddenly removed from the circuit and replaced by a wire to complete the circuit. The time constant for of the new Circuit represents the time required for the current to decrease to

The secondary coil of an ideal neon sign transformer provides 7500 V at 10.0 mA. The primary coil operates on 120 V. What current does the primary draw?

A train starts from rest and accelerates uniformly until it has traveled 2.1 km and acquired a forward velocity of 24 m/s. The train then moves at a constant velocity of 24 m/s for 400 s. The train then slows down uniformly at until it is brought to a halt. The distance traveled by the train while slowing down is closest to
