Exam 13: Geometric Dimensioning and Tolerancing

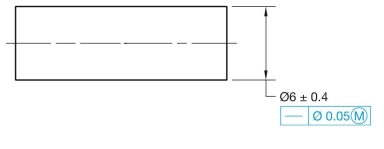

Given the following drawing and a list of possible produced sizes, specify the geometric tolerance at each possible produced size.

Given the following drawing and a list of possible produced sizes, specify the geometric tolerance at each possible produced size.

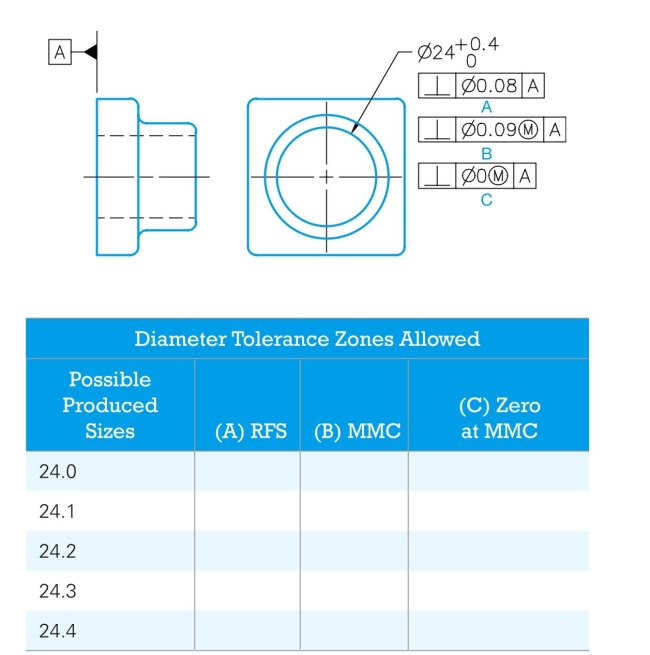

Given the following drawing, a reference chart showing a range of possible produced sizes, and three optional feature control frames that can be applied to the diameter dimension, provide the geometric tolerance at each possible produced size for each feature control frame application.

Name the geometric tolerance that specifies a zone within which the required surface element or axis must lie.

Identify at least three required conditions for datum feature simulators.

Define datum targets.

Name the following symbols.

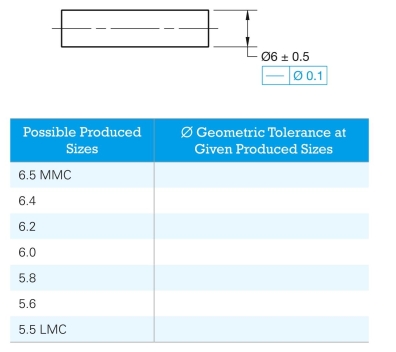

Given the following drawing and a list of possible produced sizes, specify the geometric tolerance at each possible pro- duced size.

Name the two types of profile geometric tolerances.

Explain the primary difference between the composite positional tolerance and the two single-segment positional tolerance as applied to circular patterns.

When the axis of a hole is at an extreme angle inside the positional tolerance zone, it is referred to as .

Define perfect form boundary.

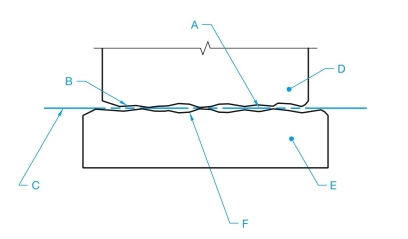

Identify the datum feature, the part, the simulated datum plane, the physical datum feature simulator, and the datum plane labeled A through F on the following illustration.

When a portion of a surface is used to establish a single da- tum, this is referred to as a(n) datum surface.

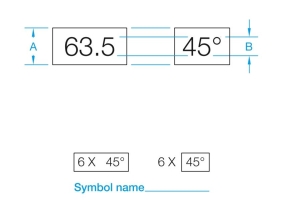

Name the following symbol and identify the proper drafting dimensions A and B.

Describe how a thread note looks when a location tolerance applied to the axis of the cylinder is established by the pitch diameter, and how this compares to applications when a location tolerance applied to the axis of the cylinder is es- tablished by the major or minor diameter.

What geometric tolerance establishes the distance between two parallel planes within which the surface must lie?

Describe the basic function of the continuous feature symbol.

Which of the following statements are true in regard to da- tum precedence and datum reference? (More than one can be true.) A) Datum precedence is established by the order of place- ment in the feature control frame. B) Datum precedence is established by alphabetical order of datum reference letters. 59728_ch13_EOC_ptg01.indd 4 2/3/16 2:21 PM C) The first datum listed in the feature control frame is the primary datum reference. D) "A" is always the primary datum. E) The third datum listed in the feature control frame is the tertiary datum reference. F) RMB is assumed unless otherwise specified.
