Exam 32: Faradays Law of Induction

A square coil (length of side = 24 cm) of wire consisting of two turns is placed in a uniform magnetic field that makes an angle of 60° with the plane of the coil. If the magnitude of this field increases by 6.0 mT every 10 ms, what is the magnitude of the emf induced in the coil?

A metal rod of length L in a region of space where a constant magnetic field points into the page rotates about an axis through its center at constant angular velocity ω. The ends, A and E, make contact with a split ring that connects to an external circuit. The current in the external circuit of resistance R has magnitude

A metal blade (length = 80 cm) spins at a constant rate of 10 radians/s about a pivot at one end. A uniform magnetic field of 2.0 mT is directed at an angle of 30° with the plane of the rotation. What is the magnitude of the potential difference between the two ends of the blade?

A car with a radio antenna 1.0 m long travels at 80 km/h in a locality where the Earth's magnetic field is 5.0 × 10−5 T. What is the maximum possible emf induced in the antenna as a result of moving through the Earth's magnetic field?

A metal rod of length L in a region of space where a constant magnetic field points into the page rotates clockwise about an axis through its center at constant angular velocity ω. While it rotates, the point(s) at highest potential is(are)

A 400-turn circular coil (radius = 1.0 cm) is oriented with its plane perpendicular to a uniform magnetic field which has a magnitude that varies sinusoidally with a frequency of 90 Hz. If the maximum value of the induced emf in the coil is observed to be 4.2 V, what is the maximum value of the magnitude of the varying magnetic field?

A square loop (length along one side = 20 cm) rotates in a constant magnetic field which has a magnitude of 2.0 T. At an instant when the angle between the field and the normal to the plane of the loop is equal to 20° and increasing at the rate of 10°/s, what is the magnitude of the induced emf in the loop?

Two bulbs are shown in a circuit that surrounds a region of increasing magnetic field directed out of the page. When the switch is closed,

A circular loop (area = 0.20 m²) turns in a uniform magnetic field with B = 0.13 T. At an instant when the angle between the magnetic field and the normal to the plane of the loop is (π) rads and is decreasing at the rate of 0.50 rad/s, what is the magnitude of the emf induced in the loop?

Two bulbs are shown in a circuit that surrounds a region of increasing magnetic field directed out of the page. When the switch is open,

A 20-cm length of wire is held along an east-west direction and moved horizontally to the north with a speed of 3.0 m/s in a region where the magnetic field of the earth is 60 μT directed 30° below the horizontal. What is the magnitude of the potential difference between the ends of the wire?

A 5-turn square loop (10 cm along a side, resistance = 4.0 Ω) is placed in a magnetic field that makes an angle of 30° with the plane of the loop. The magnitude of this field varies with time according to B = 0.50t2, where t is measured in s and B in T. What is the induced current in the coil at t = 4.0 s?

A rectangular loop (area = 0.15 m²) turns in a uniform magnetic field with B = 0.20 T. At an instant when the angle between the magnetic field and the normal to the plane of the loop is (π/2) rad and increasing at the rate of 0.60 rad/s, what is the magnitude of the emf induced in the loop?

In a region of space where the magnetic field of the Earth has a magnitude of 80 μT and is directed 30° below the horizontal, a 50-cm length of wire oriented horizontally along an east-west direction is moved horizontally to the south with a speed of 20 m/s. What is the magnitude of the induced potential difference between the ends of this wire?

A conducting bar moves as shown near a long wire carrying a constant 80-A current. If a = 1.0 mm, b = 20 mm, and v = 5.0 m/s, what is the potential difference, Va − Vb?

As shown below, a square loop of wire of side a moves through a uniform magnetic field of magnitude B perpendicular to the page at constant velocity directed to the right. Judd says that the emf induced in the loop is zero. Roger claims that it has magnitude B . Which one, if either, is correct, and why? ​ ​ ​

A conducting rod (length = 80 cm) rotates at a constant angular rate of 15 revolutions per second about a pivot at one end. A uniform field (B = 60 mT) is directed perpendicularly to the plane of rotation. What is the magnitude of the emf induced between the ends of the rod?

A bolt of lightning strikes the ground 200 m from a 100-turn coil oriented vertically and with the plane of the coil pointing toward the lightning strike. The radius of the coil is 0.800 m and the current in the lightning bolt falls from 6.02 × 106 A to zero in 10.5 μs. What is the voltage induced in the coil over this time period? [A question for future electrical engineers: is there any way to get lightning to strike repeatedly at the same point?] ​

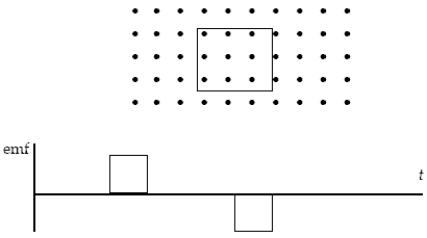

Starting outside the region with the magnetic field, a single square coil of wire moves across the region with a uniform magnetic field ​ perpendicular to the page. The loop moves at constant velocity . As seen from above, a counterclockwise emf is regarded as positive. Roger claims that the graph shown below represents the induced emf. Martin says he's wrong. In which direction did the loop move over the plane of the page, or is Martin correct? ​ ​ ​

Two bulbs are shown in a circuit that surrounds a region of increasing magnetic field directed out of the page. When the switch is closed,
