Exam 30: Magnetic Fields and Forces

The diagram below shows the position of a long straight wire perpendicular to the page and a set of directions labeled A through H. When the current in the wire is directed up out of the page, the direction of the magnetic field at point P is

The magnetic field in a region of space is parallel to the surface of a long flat table. Imagine that this page is lying flat on the table. When current is present in the coil, which is lying on the table, the coil tends to rotate so that the left side moves up and the right side moves down. The magnetic field is

An electron has a velocity of 6.0 × 106 m/s in the positive x direction at a point where the magnetic field has the components Bx = 3.0 T, By = 1.5 T, and Bz = 2.0 T. What is the magnitude of the acceleration of the electron at this point?

What is the kinetic energy of an electron that passes undeviated through perpendicular electric and magnetic fields if E = 4.0 kV/m and B = 8.0 mT?

Three particles of equal charge, X, Y, and Z, enter a uniform magnetic field . X has velocity of magnitude v parallel to the field. Y has velocity of magnitude v perpendicular to the field. Z has equal velocity components v parallel and perpendicular to the field. Rank the radii of their orbits from least to greatest.

The reason the north pole of a bar magnet free to rotate points north is because

A proton moves around a circular path (radius = 2.0 mm) in a uniform 0.25-T magnetic field. What total distance does this proton travel during a 1.0-s time interval? (m = 1.67 × 10−27 kg, q = 1.6 × 10−19 C)

A particle (mass = 2.0 mg, charge = −6.0 μC) moves in the positive direction along the x axis with a velocity of 3.0 km/s. It enters a magnetic field of mT. What is the acceleration of the particle?

At what speed would a proton need to circle the Earth at a height of 1000 km above the equator if the Earth's magnetic field is horizontal and directed north-south, with an intensity of 4.00 × 10−8 T? (The radius of the Earth is 6400 km and the charge and mass of the proton are q = 1.60 × 10−19 C and mp = 1.67 × 10−27 kg. Ignore relativistic corrections.)

The point P lies along the perpendicular bisector of the line connecting two long straight wires S and T perpendicular to the page. A set of directions A through H is shown next to the diagram. When the two equal currents in the wires are directed up out of the page, the direction of the magnetic field at P is closest to the direction of

A particle (q = −4.0 μC, m = 5.0 mg) moves in a uniform magnetic field with a velocity having a magnitude of 2.0 km/s and a direction that is 50° away from that of the magnetic field. The particle is observed to have an acceleration with a magnitude of 5.8 m/s². What is the magnitude of the magnetic field?

Equal charges, one at rest, the other having a velocity of 104 m/s, are released in a uniform magnetic field. Which charge has the largest force exerted on it by the magnetic field?

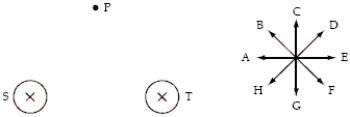

The point P lies along the perpendicular bisector of the line connecting two long straight wires S and T perpendicular to the page. A set of directions A through H is shown next to the diagram. When the two equal currents in the wires are directed into the page, the direction of the magnetic field at P is closest to the direction of

The boundary shown is that of a uniform magnetic field directed in the positive z direction. An electron enters the magnetic field with a velocity pointing along the x axis and exits 0.63 μs later at point A. What is the magnitude of the magnetic field?

A circular coil (radius = 0.40 m) has 160 turns and is in a uniform magnetic field. When the orientation of the coil is varied through all possible positions, the maximum torque on the coil by magnetic forces is 0.16 N ⋅ m when the current in the coil is 4.0 mA. What is the magnitude of the magnetic field?

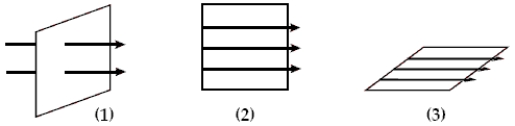

A current loop is oriented in three different positions relative to a uniform magnetic field. In position 1 the plane of the loop is perpendicular to the field lines. In positionS 2 and 3 the plane of the loop is parallel to the field as shown. The torque on the loop is maximum in ​ ​

Two single charged ions moving perpendicularly to a uniform magnetic field (B = 0.40 T) with speeds of 5000 km/s follow circular paths that differ in diameter by 5.0 cm. What is the difference in the mass of these two ions?

A physicist claims that she has found a new particle with a mass 200,000 times the mass of the proton (1.67 × 10−27 kg) and a charge of 3.20 × 10−19 C. If she is correct, such a particle traveling in a circle in a uniform 5.00-T magnetic field at a velocity of 2 500 m/s will have a radius of

The magnetic dipole moment of an electron (charge = −e; mass = me) moving in a circular orbit of radius r with speed v about a nucleus of mass mN is proportional to

A particle (q = 5.0 nC, m = 3.0 μg) moves in a region where the magnetic field has components Bx = 2.0 mT, By = 3.0 mT, and Bz = −4.0 mT. At an instant when the speed of the particle is 5.0 km/s and the direction of its velocity is 120° relative to the magnetic field, what is the magnitude of the acceleration of the particle?
