Exam 38: Coordination of Drawings

On larger projects it is common for a material ____ system to be used to label the materials used.

In most commercial construction drawing sets, the final page of the drawing set includes the index.

The top symbol in the accompanying figure is the ____ symbol.

The bottom symbol in the accompanying figure is the ____ symbol.

Interior elevations are not usually referenced with their own type of symbols on floor plans.

The accompanying figure demonstrates the ____ system.

The letter suffix combined with the number creates a __________which_identifies the specific reference notation used on the drawing.

Many of the callouts on the landing detail are a decimal number followed by a letter. That is the ____ symbol.

Most architects use the letter S to indicate ____ drawings.

The symbols for section views and the symbols for detail drawings are similar in appearance and the format but have one significant difference.

Many of the material keynotes are referenced on several of the drawing sheets.

Most architects use the letter A to indicate ____ drawings.

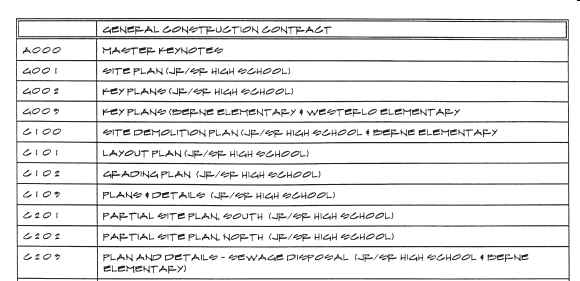

The accompanying figure shows part of the ____.

A large building, like the School Addition, requires a large number of sections and details to describe all aspects of the structure.

Drawing ____ are made up of one or two letters and numerals.

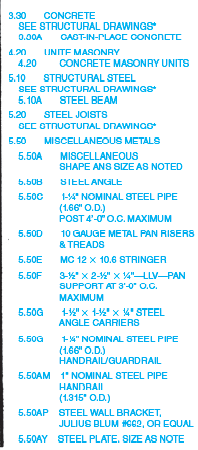

Many of the material keynotes are referenced on several of the drawing sheets as well as on the master legend on sheet ___________.

A set of working drawings for a large commercial building might fill more than one hundred sheets.

The above given specifications are ________________.

The Drawing ____ includes the number of the drawing and the drawing title.

Buildings with columns of reinforced concrete or structural steel as a main element of the building frame are laid out on a ____.
