Exam 30: Magnetic Fields and Forces

The figure shows the orientation of a rectangular loop consisting of 80 closely wrapped turns each carrying a current I. The magnetic field in the region is ( ) mT. The loop can turn about the y axis. If θ = 30°, a = 0.40 m, b = 0.30 m, and I = 8.0 A, what is the magnitude of the torque exerted on the loop? ​ ​

A 2.0-C charge moves with a velocity of m/s and experiences a magnetic force of N. The x component of the magnetic field is equal to zero. Determine the y component of the magnetic field.

A straight wire of length L carries a current I in the positive z direction in a region where the magnetic field is uniform and specified by Bx = 3B, By = −2B, and Bz = B, where B is a constant. What is the magnitude of the magnetic force on the wire?

A thin ribbon of a silver alloy 2.00-cm wide and 0.0150-mm thick carries a current of 6.98 A perpendicular to a magnetic field. The Hall voltage is found to be 1.24 × 10−4 V when the magnetic field is 2.50 T. Calculate n, the number of charge carriers per cubic meter.

A 2.0-m wire carries a current of 15 A directed along the positive x axis in a region where the magnetic field is uniform and given by B = mT. What is the resulting magnetic force on the wire?

A circular loop (radius = 0.50 m) carries a current of 3.0 A and has unit normal vector of /3. What is the x component of the torque on this loop when it is placed in a uniform magnetic field of T?

The figure shows the orientation of a flat circular loop consisting of 50 closely wrapped turns each carrying a current I. The magnetic field in the region is directed in the positive z direction and has a magnitude of 50 mT. The loop can turn about the y axis. If θ = 20°, R = 0.50 m, and I = 12 A, what is the magnitude of the torque exerted on the loop? ​ ​

A 2.0-C charge moves with a velocity of ( m/s and experiences a magnetic force of N. The x component of the magnetic field is equal to zero. Determine the z component of the magnetic field.

Bert says that a charged particle in a vacuum can travel in a helix only if a uniform electric field and a uniform magnetic field are both present and both parallel to the axis of the helix. Stuart says that only a magnetic field with a component parallel to the axis of the helix is needed. Which one, if either, is correct, and why?

An unusual lightning strike has a vertical portion with a current of −400 A downwards. The Earth's magnetic field at that location is parallel to the ground and has a magnitude of 30 μT. In N, the force exerted by the Earth's magnetic field on the 25 m-long current is

A straight wire of length 70 cm carries a current of 50 A and makes an angle of 60° with a uniform magnetic field. If the force on the wire is 1.0 N what is the magnitude of ?

A square loop (L = 0.20 m) consists of 50 closely wrapped turns, each carrying a current of 0.50 A. The loop is oriented as shown in a uniform magnetic field of 0.40 T directed in the positive y direction. What is the magnitude of the torque on the loop?

A charged particle (m = 5.0 g, q = −70 μC) moves horizontally at a constant speed of 30 km/s in a region where the free fall gravitational acceleration is 9.8 m/s² downward, the electric field is 700 N/C upward, and the magnetic field is perpendicular to the velocity of the particle. What is the magnitude of the magnetic field in this region?

A particle (mass = 6.0 mg) moves with a speed of 4.0 km/s in a direction that makes an angle of 37° above the positive x axis in the xy plane. At the instant it enters a magnetic field of (5.0 ) mT it experiences an acceleration of (8.0 ) m/s². What is the charge of the particle?

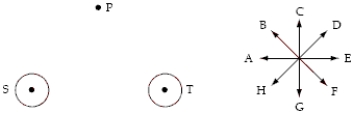

The point P lies along the perpendicular bisector of the line connecting two long straight wires S and T that are perpendicular to the page. A set of directions A through H is shown next to the diagram. When the two equal currents in the wires are directed up out of the page, the direction of the magnetic field at P is closest to the direction of

A velocity selector uses a fixed electric field of magnitude E and the magnetic field is varied to select particles of various energies. If a magnetic field of magnitude B is used to select a particle of a certain energy and mass, what magnitude of magnetic field is needed to select a particle of equal mass but twice the energy?

A deuteron is accelerated from rest through a 10-kV potential difference and then moves perpendicularly to a uniform magnetic field with B = 1.6 T. What is the radius of the resulting circular path? (deuteron: m = 3.3 × 10−27 kg, q = 1.6 × 10−19 C)

A wire (mass = 50 g, length = 40 cm) is suspended horizontally by two vertical wires which conduct a current I = 8.0 A, as shown in the figure. The magnetic field in the region is into the paper and has a magnitude of 60 mT. What is the tension in either wire?

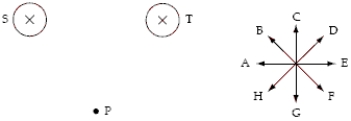

The point P lies along the perpendicular bisector of the line connecting two long straight wires S and T perpendicular to the page. A set of directions A through H is shown next to the diagram. When the two equal currents in the wires are directed into the page, the direction of the magnetic field at P is closest to the direction of

A magnetic field is directed out of the page. Two charged particles enter from the top and take the paths shown in the figure. Which statement is correct?
