Exam 12: Boolean Algebra

Explore all topics

Use a K-map to minimize the sum-of-products expansion $x y z + x \bar { y } z + \bar { x } \bar { y } z + x \bar { y } \bar { z } + \bar { x } y z + \bar { x } \bar { y } \bar { z }$

Free

(Essay)

4.8/5

(35)

Question 1

Correct Answer:

Verified

We construct the following K-map. $We construct the following K-map. This gives us the expansion \bar { y } + z$ This gives us the expansion $\bar { y } + z$

Construct a circuit using inverters, OR gates, and AND gates that gives an output of 1 if three people on a committee do not all vote the same.

Free

(Essay)

4.9/5

(45)

Question 2

Correct Answer:

Verified

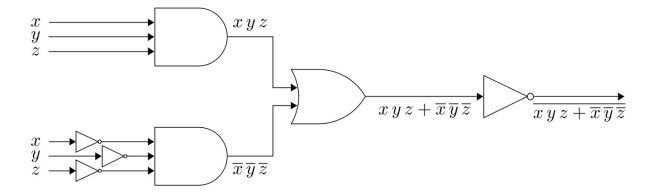

Let $x , y$ , and $z$ represent the votes of the three people on the committee with a variable taking the value 1 if the vote is affirmative and the value 0 if the vote is negative. The circuit should produce an output of 1 if and only if not all three of the variables have the same value. The function $f ( x , y , z ) = \overline { ( x y z + \bar { x } \bar { y } \bar { z } ) }$ gives this output. Hence we can use the following circuit. $Let x , y , and z represent the votes of the three people on the committee with a variable taking the value 1 if the vote is affirmative and the value 0 if the vote is negative. The circuit should produce an output of 1 if and only if not all three of the variables have the same value. The function f ( x , y , z ) = \overline { ( x y z + \bar { x } \bar { y } \bar { z } ) } gives this output. Hence we can use the following circuit.$

What is the output of the following circuit?

Free

(Essay)

4.8/5

(36)

Question 3

Correct Answer:

Verified

The output of the circuit is $\bar { x } y + x \bar { z }$

Prove or disprove that $x + x y + x y z = x$ whenever x, y, and z are Boolean variables.

(Essay)

4.8/5

(33)

Question 4

How many diﬀerent Boolean functions are there of degree 3?

(Essay)

4.7/5

(25)

Question 5

What is the value of the Boolean function $f ( x , y , z ) = ( \bar { x } + \bar { y } ) z + x y z \text { when } x = 1 , y = 0 \text { and } z = 1 ?$

(Essay)

4.7/5

(30)

Question 6

Prove or disprove that x y + y = y whenever x and y are Boolean variables.

(Essay)

4.9/5

(31)

Question 7

Use a K-map to minimize the sum-of-products expansion x y z + x y z + x y z + x y z.

(Essay)

4.9/5

(40)

Question 8

Find a Boolean function f(x, y, z) that has the value 1 if and only if exactly two of x, y, and z have the value 1.

(Essay)

4.7/5

(44)

Question 9

Is the set of operators {+, ·} functionally complete? Justify your answer.

(Essay)

4.7/5

(38)

Question 10

Find the sum-of-products expansion of a Boolean function f(x, y, z) that is 1 if and only if x = y = 1 and z = 0, or x = 0 and y = z = 1, or x = y = 0 and z = 1.

(Essay)

4.9/5

(38)

Question 11
