Question 1

Determine the velocity of the ball at t = 3.00 seconds.

Accepted Answer

A) 9.40 m/s, downward
B) 9.40 m/s, upward
C) 29.4 m/s, downward
D) 38.8 m/s, upward
E) 38.8 m/s, downward
A) 9.40 m/s, downward
B) 9.40 m/s, upward
C) 29.4 m/s, downward
D) 38.8 m/s, upward
E) 38.8 m/s, downward

Question 2

Neglecting air resistance, what maximum height will be reached by an arrow launched straight upward with an initial speed of 35 m/s?

Accepted Answer

A) 98 m
B) 160 m
C) 41 m
D) 63 m
E) 18 m
A) 98 m
B) 160 m
C) 41 m
D) 63 m
E) 18 m

Question 3

The graph shows the height versus time of an object.Estimate the instantaneous velocity, in m/s, of the object at time t = 15 min.

Accepted Answer

A) 0.90 m/s
B) 0.70 m/s
C) 0.50 m/s
D) 0.30 m/s
E) 0.10 m/s
A) 0.90 m/s
B) 0.70 m/s
C) 0.50 m/s
D) 0.30 m/s
E) 0.10 m/s

Question 4

2-15

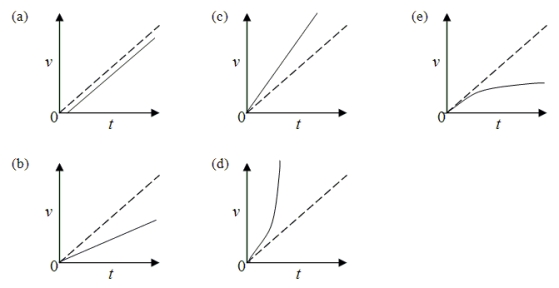

The figure shows the speed as a function of time for an object in free fall near the surface of the earth.   The object was dropped from rest in a long evacuated cylinder.
-If the same object were released in air, the magnitude of its acceleration would begin at the free-fall value, but it would decrease continuously to zero as the object continued to fall.For which one of the choices given does the solid line best represent the speed of the object as a function of time when it is dropped from rest in air? Note: The dashed line shows the free-fall under vacuum graph for comparison.

Accepted Answer

A) a
B) b
C) c
D) d
E) e
A) a
B) b
C) c
D) d
E) e

Question 5

A racecar, traveling at constant speed, makes one lap around a circular track of radius r in a time t.Note: The circumference of a circle is given by C = 2 $\pi$r.
-An elevator is moving upward with a speed of 11 m/s.Three seconds later, the elevator is still moving upward, but its speed has been reduced to 5.0 m/s.What is the average acceleration of the elevator during the 3.0 s interval?

Accepted Answer

A) 2.0 m/s2, upward
B) 2.0 m/s2, downward
C) 5.3 m/s2, upward
D) 5.3 m/s2, downward
E) 2.7 m/s2, downward
A) 2.0 m/s2, upward
B) 2.0 m/s2, downward
C) 5.3 m/s2, upward
D) 5.3 m/s2, downward
E) 2.7 m/s2, downward

Question 6

A hammer is accidentally dropped from rest down a vertical mine shaft.How long does it take for the rock to reach a depth of 79 m? Neglect air resistance.

Accepted Answer

A) 2.8 s
B) 9.0 s
C) 8.0 s
D) 4.9 s
E) 4.0 s
A) 2.8 s
B) 9.0 s
C) 8.0 s
D) 4.9 s
E) 4.0 s

Question 7

2-4
A ball is shot straight up from the surface of the earth with an initial speed of 19.6 m/s.
Neglect any effects due to air resistance.
-What is the magnitude of the ball's displacement from the starting point after 1.00 second has elapsed?

Accepted Answer

A) 9.80 m
B) 14.7 m
C) 19.6 m
D) 24.5 m
E) 58.8 m
A) 9.80 m
B) 14.7 m
C) 19.6 m
D) 24.5 m
E) 58.8 m

Question 8

Starting from rest, a particle confined to move along a straight line is accelerated at a rate of 5.0 m/s2.Which one of the following statements accurately describes the motion of this particle?

Accepted Answer

A) The particle travels 5.0 m during each second.
B) The particle travels 5.0 m only during the first second.
C) The speed of the particle increases by 5.0 m/s during each second.
D) The acceleration of the particle increases by 5.0 m/s2 during each second.
E) The final speed of the particle will be proportional to the distance that the particle covers.
A) The particle travels 5.0 m during each second.
B) The particle travels 5.0 m only during the first second.
C) The speed of the particle increases by 5.0 m/s during each second.
D) The acceleration of the particle increases by 5.0 m/s2 during each second.
E) The final speed of the particle will be proportional to the distance that the particle covers.

Question 9

2-10
A automotive test driver travels due north in a prototype hybrid vehicle at 30 mi/h for 2 hours.She then reverses her direction and travels due south at 60 mi/h for 1 hour.
-What is the average velocity of the vehicle?

Accepted Answer

A) zero mi/h
B) 40 mi/h, north
C) 40 mi/h, south
D) 45 mi/h, north
E) 45 mi/h, south
A) zero mi/h
B) 40 mi/h, north
C) 40 mi/h, south
D) 45 mi/h, north
E) 45 mi/h, south

Question 10

Which one of the following statements must be true if the expression   is to be used?

Accepted Answer

A) x is constant.
B) v is constant.
C) t is constant.
D) a is constant.
E) Both v0 and t are constant.
A) x is constant.
B) v is constant.
C) t is constant.
D) a is constant.
E) Both v0 and t are constant.

Question 11

2-9
An object is moving along a straight line in the positive x direction.The graph shows its position from the starting point as a function of time.Various segments of the graph are identified by the letters A, B, C, and D.
-Which segment(s) of the graph represent(s) a constant velocity of +1.0 m/s?

Accepted Answer

A) A
B) B
C) C
D) D
E) A and C
A) A
B) B
C) C
D) D
E) A and C

Question 12

2-6
An object is moving along the x axis.The graph shows its position from the starting point as a function of time.Various segments of the graph are identified by the letters A, B, C, and D.
-What is the acceleration of the object at t = 7.0 s?

Accepted Answer

A) zero m/s2
B) -2.0 m/s2
C) -3.0 m/s2
D) +9.8 m/s2
E) +4.0 m/s2
A) zero m/s2
B) -2.0 m/s2
C) -3.0 m/s2
D) +9.8 m/s2
E) +4.0 m/s2

Question 13

What is the acceleration of the object in the interval from t = 5 s to t = 6 s?

Accepted Answer

A) -40 m/s2
B) +40 m/s2
C) -20 m/s2
D) +20 m/s2
E) -10 m/s2
A) -40 m/s2
B) +40 m/s2
C) -20 m/s2
D) +20 m/s2
E) -10 m/s2

Question 14

Which one of the following is not a vector quantity?

Accepted Answer

A) acceleration
B) average speed
C) displacement
D) average velocity
E) instantaneous velocity
A) acceleration
B) average speed
C) displacement
D) average velocity
E) instantaneous velocity

Question 15

2-6
An object is moving along the x axis.The graph shows its position from the starting point as a function of time.Various segments of the graph are identified by the letters A, B, C, and D.
-What is the velocity of the object at t = 7.0 s?

Accepted Answer

A) +3.0 m/s
B) -1.0 m/s
C) -2.0 m/s
D) -3.0 m/s
E) zero m/s
A) +3.0 m/s
B) -1.0 m/s
C) -2.0 m/s
D) -3.0 m/s
E) zero m/s

Question 16

A car starts from rest and accelerates at a constant rate in a straight line.In the first second the car moves a distance of 2.0 meters.How fast will the car be moving at the end of the second second?

Accepted Answer

A) 4.0 m/s
B) 16 m/s
C) 2.0 m/s
D) 32 m/s
E) 8.0 m/s
A) 4.0 m/s
B) 16 m/s
C) 2.0 m/s
D) 32 m/s
E) 8.0 m/s

Question 17

Which one of the physical quantities listed below is not correctly paired with its SI unit and dimension?

Accepted Answer

A)
B)
C)
D)
E)
A)
B)
C)
D)
E)

Question 18

During the first 18 minutes of a 1.0-hour trip, a car has an average speed of 11 m/s.What must the average speed of the car be during the last 42 minutes of the trip be if the car is to have an average speed of 21 m/s for the entire trip?

Accepted Answer

A) 21 m/s
B) 23 m/s
C) 25 m/s
D) 27 m/s
E) 29 m/s
A) 21 m/s
B) 23 m/s
C) 25 m/s
D) 27 m/s
E) 29 m/s

Question 19

2-12
A rock, dropped from rest near the surface of an atmosphere-free planet, attains a speed of 20.0 m/s after falling 8.0 meters.
-What is the magnitude of the acceleration due to gravity on the surface of this planet?

Accepted Answer

A) 0.40 m/s2
B) 1.3 m/s2
C) 2.5 m/s2
D) 25 m/s2
E) 160 m/s2
A) 0.40 m/s2
B) 1.3 m/s2
C) 2.5 m/s2
D) 25 m/s2
E) 160 m/s2

Question 20

A Canadian goose flew 845 km from Southern California to Oregon with an average speed of 28.0 m/s.How long, in hours, did it take the goose to make this journey?

Accepted Answer

A) 27.7 h
B) 8.33 h
C) 66.1 h
D) 7.70 h
E) 8.38 h
A) 27.7 h
B) 8.33 h
C) 66.1 h
D) 7.70 h
E) 8.38 h
