Exam 10: A: Graphs

Suppose you have a graph G with vertices v₁, v₂, . . . , v₁₇. Explain how you would use the adjacency matrix A to ﬁnd (a) The number of paths from $v _ { 5 } \text { to } v _ { 3 }$ of length 12. (b) The length of a shortest path from $v _ { 5 } \text { to } v _ { 3 }$ .

(Essay)

4.9/5

(40)

Question 21

either give an example or prove that there are none. -A simple digraph with indegrees 0, 1, 2 and outdegrees 0, 1, 2.

(Essay)

4.8/5

(29)

Question 22

either give an example or prove that there are none. -A planar graph with 8 vertices, 12 edges, and 6 regions.

(Short Answer)

4.9/5

(40)

Question 23

ﬁnd $\kappa ( G ) , \lambda ( G ) \text {, and } \min _ { \nu \in V } \operatorname { deg } ( \nu ) \text {, and determine which of the two inequalities }$ $\text { in } \kappa ( G ) \leq \lambda ( G ) \leq \min _ { \nu \in V } \operatorname { deg } ( \nu ) \text { are strict }$ - $ﬁnd \kappa ( G ) , \lambda ( G ) \text {, and } \min _ { \nu \in V } \operatorname { deg } ( \nu ) \text {, and determine which of the two inequalities } \text { in } \kappa ( G ) \leq \lambda ( G ) \leq \min _ { \nu \in V } \operatorname { deg } ( \nu ) \text { are strict } -$

(Short Answer)

4.8/5

(31)

Question 24

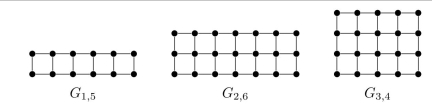

the grid graph G_m,n refers to the graph obtained by taking an m × n rectangular grid of streets (m ≤ n) with m north/south blocks and n east/west blocks. For example: $the grid graph Gm,n refers to the graph obtained by taking an m × n rectangular grid of streets (m ≤ n) with m north/south blocks and n east/west blocks. For example: -For which positive integers m and n does G _ { m , n } have an Euler path but no Euler circuit?$ -For which positive integers m and n does $G _ { m , n }$ have an Euler path but no Euler circuit?

(Short Answer)

4.9/5

(29)

Question 25

ﬁll in the blanks. -If G is a planar connected graph with 20 vertices, each of degree 3, then G has ____ regions.

(Short Answer)

4.9/5

(38)

Question 26

ﬁll in the blanks. -List all positive integers n such that $Q _ { n }$ has a Hamilton circuit ____.

(Short Answer)

4.9/5

(40)

Question 27

either give an example or prove that there are none. -A connected simple planar graph with 5 regions and 8 vertices, each of degree 3.

(Essay)

4.7/5

(43)

Question 28

Find the strongly connected components of the graph.

(Essay)

4.9/5

(45)

Question 29

the grid graph G_m,n refers to the graph obtained by taking an m × n rectangular grid of streets (m ≤ n) with m north/south blocks and n east/west blocks. For example: $the grid graph Gm,n refers to the graph obtained by taking an m × n rectangular grid of streets (m ≤ n) with m north/south blocks and n east/west blocks. For example: -Find a formula for the number of regions (including the inﬁnite region) of G _ { m , n }$ -Find a formula for the number of regions (including the inﬁnite region) of $G _ { m , n }$

(Short Answer)

4.7/5

(32)

Question 30

refer to a cubic graph, i.e., a graph that is simple and has every vertex of degree 3. -Draw a cubic graph with 7 vertices, or else prove that there are none.

(Essay)

4.8/5

(44)

Question 31

Find the vertex-chromatic number, the edge-chromatic number, and the region-chromatic number for K_3,2.

(Essay)

4.8/5

(34)

Question 32

ﬁll in the blanks. -The adjacency matrix for $\mathrm { K } _ { m , n }$ has ____ columns.

(Short Answer)

4.8/5

(40)

Question 33

ﬁll in the blanks. -If a regular graph G has 10 vertices and 45 edges, then each vertex of G has ____ degree .

(Short Answer)

4.8/5

(41)

Question 34

the grid graph G_m,n refers to the graph obtained by taking an m × n rectangular grid of streets (m ≤ n) with m north/south blocks and n east/west blocks. For example: $the grid graph Gm,n refers to the graph obtained by taking an m × n rectangular grid of streets (m ≤ n) with m north/south blocks and n east/west blocks. For example: -Find a formula for the number of vertices of G _ { m , n }$ -Find a formula for the number of vertices of $G _ { m , n }$

(Short Answer)

4.9/5

(34)

Question 35

either give an example or prove that there are none. -A simple digraph with indegrees 1, 1, 1 and outdegrees 1, 1, 1.

(Short Answer)

4.9/5

(37)

Question 36

Determine whether this graph is planar.

(Essay)

4.9/5

(39)

Question 37

either give an example or prove that there are none. -A graph with a Hamilton circuit but no Hamilton path.

(Short Answer)

4.7/5

(36)

Question 38

ﬁll in the blanks. -The adjacency matrix for $Q _ { 4 }$ has ____ entries.

(Short Answer)

4.9/5

(35)

Question 39

either give an example or prove that there are none. -A simple graph with 8 vertices, whose degrees are 0, 1, 2, 3, 4, 5, 6, 7.

(Essay)

4.8/5

(43)

Question 40
