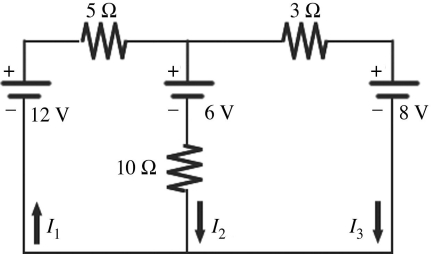

Question 1

A multiloop circuit is shown in the figure.It is not necessary to solve the entire circuit.The current I2 is closest to

Accepted Answer

A)  -6 A.
B)  6 A.
C)  8 A.
D)  -8 A.
E)  zero.
A)  -6 A.
B)  6 A.
C)  8 A.
D)  -8 A.
E)  zero. A

Question 2

Three resistors are connected across an ideal 2.0-V DC battery as shown in the figure.
(a)At what rate does the battery supply energy to the resistors?
(b)At what rate is heat produced in the 6.0-Ω resistor?

Accepted Answer

(a)3.0 W (b)0.67 W

Question 3

Two light bulbs,B1 and B2,are connected to a battery having appreciable internal resistance as shown in the figure.What happens to the brightness of bulb B1 when we close the switch S?

Accepted Answer

A)  The brightness of B1 increases permanently.
B)  The brightness of B1 decreases permanently.
C)  The brightness of B1 does not change.
D)  The brightness of B1 increases temporarily but gradually decreases back to its original brightness.
E)  The brightness of B1 decreases temporarily but gradually increases back to its original brightness.
A)  The brightness of B1 increases permanently.
B)  The brightness of B1 decreases permanently.
C)  The brightness of B1 does not change.
D)  The brightness of B1 increases temporarily but gradually decreases back to its original brightness.
E)  The brightness of B1 decreases temporarily but gradually increases back to its original brightness. B

Question 4

A 6.0-μF capacitor is connected in series with= 5.0 MΩ resistor,and this combination is connected across an ideal 15-V DC battery.What is the current in the circuit when the capacitor has reached 20% of its maximum charge?

Accepted Answer

A)  6.5 μA
B)  2.4 μA
C)  1.3 μA
D)  4.7 μA
E)  9.1 μA
A)  6.5 μA
B)  2.4 μA
C)  1.3 μA
D)  4.7 μA
E)  9.1 μA

Question 5

A 5.0-Ω resistor and a 9.0-Ω resistor are connected in parallel.A 4.0-Ω resistor is then connected in series with this parallel combination.An ideal 6.0-V battery is then connected across the series-parallel combination of the three resistors.What is the current through
(a)the 4.0-Ω resistor?
(b)the 5.0-Ω resistor?
(c)the 9.0-Ω resistor?

Accepted Answer

(a)0.83 A

Question 6

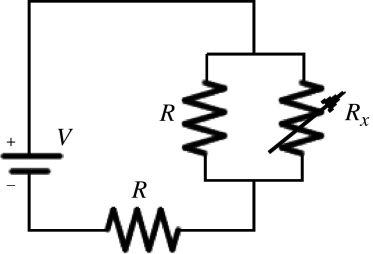

Two identical resistors of resistance R = 24 Ω and a variable resistor Rx are connected to an ideal battery of voltage V as shown in the figure.What should be the value of the variable resistance Rx to make the voltage across the two parallel resistors equal to   ?

Accepted Answer

A)  4.0 Ω
B)  24 Ω
C)  8.0 Ω
D)  16 Ω
E)  40 Ω
A)  4.0 Ω
B)  24 Ω
C)  8.0 Ω
D)  16 Ω
E)  40 Ω

Question 7

A galvanometer with a resistance of 40.0 Ω deflects full scale at a current of 2.0 mA.What resistance should be used with this galvanometer in order to construct a voltmeter that can read a maximum of 50 V?

Accepted Answer

A)  25 kΩ
B)  27 kΩ
C)  29 kΩ
D)  31 kΩ
E)  35 kΩ
A)  25 kΩ
B)  27 kΩ
C)  29 kΩ
D)  31 kΩ
E)  35 kΩ

Question 8

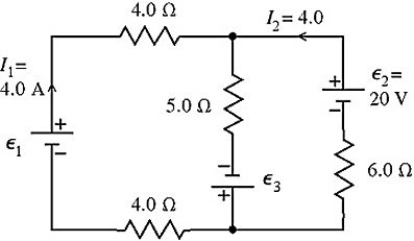

Consider the circuit shown in the figure.Note that two currents are shown.Calculate the emfs ε1 and ε3.

Accepted Answer

Question 9

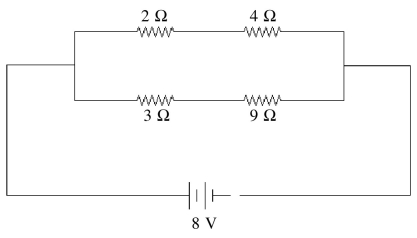

Four resistors are connected across an 8-V DC battery as shown in the figure.The current through the 9-Ω resistor is closest to

Accepted Answer

A)  1 A.
B)  0.7 A.
C)  0.5 A.
D)  0.9 A.
E)  2 A.
A)  1 A.
B)  0.7 A.
C)  0.5 A.
D)  0.9 A.
E)  2 A.

Question 10

A 4.0-mF capacitor is discharged through a 4.0-kΩ resistor.How long will it take for the capacitor to lose half its initial stored energy?

Accepted Answer

A)  9.2 s
B)  2.7 s
C)  10.2 s
D)  5.5 s
E)  1.6 s
A)  9.2 s
B)  2.7 s
C)  10.2 s
D)  5.5 s
E)  1.6 s

Question 11

A galvanometer has an internal resistance of 100 Ω and deflects full-scale at 2.00 mA.What size resistor should be added to the galvanometer to convert it to a milliammeter capable of reading up to 4.00 mA,and how should this resistor be connected to the galvanometer?

Accepted Answer

A)  50.0 Ω in series with the galvanometer
B)  50.0 Ω in parallel with the galvanometer
C)  75.0 Ω in parallel with the galvanometer
D)  100 Ω in series with the galvanometer
E)  100 Ω in parallel with the galvanometer
A)  50.0 Ω in series with the galvanometer
B)  50.0 Ω in parallel with the galvanometer
C)  75.0 Ω in parallel with the galvanometer
D)  100 Ω in series with the galvanometer
E)  100 Ω in parallel with the galvanometer

Question 12

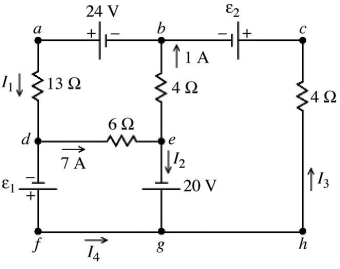

A multiloop circuit is shown in the figure.Some circuit quantities are not labeled.It is not necessary to solve the entire circuit.The current I2 is closest to

Accepted Answer

A)  +0.1 A.
B)  +0.3 A.
C)  +0.5 A.
D)  -0.1 A.
E)  -0.3 A.
A)  +0.1 A.
B)  +0.3 A.
C)  +0.5 A.
D)  -0.1 A.
E)  -0.3 A.

Question 13

A galvanometer has an internal resistance of 100 Ω and deflects full-scale at a current of 2.00 mA.What size resistor should be added to it to convert it to a millivoltmeter capable of reading up to 400 mV,and how should this resistor be connected to the galvanometer?

Accepted Answer

A)  50.0 Ω in series with the galvanometer
B)  50.0 Ω in parallel with the galvanometer
C)  75.0 Ω in parallel with the galvanometer
D)  100 Ω in series with the galvanometer
E)  100 Ω in parallel with the galvanometer
A)  50.0 Ω in series with the galvanometer
B)  50.0 Ω in parallel with the galvanometer
C)  75.0 Ω in parallel with the galvanometer
D)  100 Ω in series with the galvanometer
E)  100 Ω in parallel with the galvanometer

Question 14

A 4.0-μF capacitor that is initially uncharged is connected in series with a 4.0-kΩ resistor and an ideal 17.0-V battery.How much energy is stored in the capacitor 17 ms after the battery has been connected?

Accepted Answer

A)  250,000 nJ
B)  15,000 kJ
C)  25 µJ
D)  890 nJ
A)  250,000 nJ
B)  15,000 kJ
C)  25 µJ
D)  890 nJ

Question 15

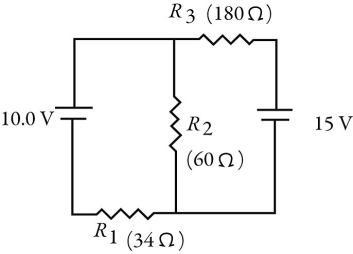

For the circuit shown in the figure,what is the current through resistor R1?

Accepted Answer

A)  0.071 A
B)  0.13 A
C)  0.029 A
D)  0.016 A
A)  0.071 A
B)  0.13 A
C)  0.029 A
D)  0.016 A

Question 16

A 4.00-Ω resistor,an 8.00-Ω resistor,and a 24.0-Ω resistor are connected together.
(a)What is the maximum resistance that can be produced using all three resistors?
(b)What is the minimum resistance that can be produced using all three resistors?
(c)How would you connect these three resistors to obtain a resistance of 10.0 Ω?
(d)How would you connect these three resistors to obtain a resistance of 8.00 Ω?

Accepted Answer

(a)36.0 Ω (b)2.40 Ω
(c)Connect the 8.00-

Question 17

For the circuit shown in the figure,all quantities are accurate to 2 significant figures.What is the value of the current I1?

Accepted Answer

A)  0.32 A
B)  0.11 A
C)  0.29 A
D)  0.61 A
E)  0.89 A
A)  0.32 A
B)  0.11 A
C)  0.29 A
D)  0.61 A
E)  0.89 A

Question 18

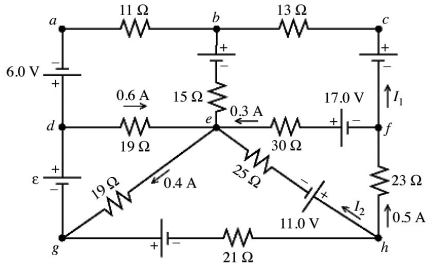

A multiloop circuit is shown in the figure.Some circuit quantities are not labeled.It is not necessary to solve the entire circuit.The emf ε is closest to

Accepted Answer

A)  +3 V.
B)  +19 V.
C)  -3 V.
D)  -10 V.
E)  -1 V.
A)  +3 V.
B)  +19 V.
C)  -3 V.
D)  -10 V.
E)  -1 V.

Question 19

For the circuit shown in the figure,what is the current through resistor R3?

Accepted Answer

A)  0.043 A
B)  1.5 A
C)  0.028 A
D)  0.086 A
A)  0.043 A
B)  1.5 A
C)  0.028 A
D)  0.086 A

Question 20

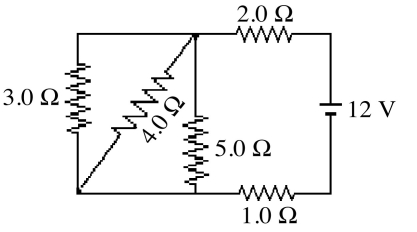

For the circuit shown in the figure,determine the current in
(a)the 1.0-Ω resistor.
(b)the 3.0-Ω resistor.
(c)the 4.0-Ω resistor.

Accepted Answer

(a)2.8 A (
