Exam 12: Rotation of a Rigid Body

A metal bar is hanging from a hook in the ceiling when it is suddenly struck by a ball that is moving horizontally (see figure). The ball is covered with glue, so it sticks to the bar. During this collision

A heavy boy and a lightweight girl are balanced on a massless seesaw. If they both move forward so that they are one-half their original distance from the pivot point, what will happen to the seesaw? Assume that both people are small enough compared to the length of the seesaw to be thought of as point masses.

A 1.10-kg wrench is acting on a nut trying to turn it. The length of the wrench lies directly to the east of the nut. A force 150.0 N acts on the wrench at a position 15.0 cm from the center of the nut in a direction 30.0° north of east. What is the magnitude of the torque about the center of the nut?

A light triangular plate OAB is in a horizontal plane. Three forces, F₁ = 6.0 N, F₂ = 9.0 N, and F₃ = 7.0 N, act on the plate, which is pivoted about a vertical axes through point O. In the figure, ₂ is perpendicular to OB. Consider the counterclockwise sense as positive. The sum of the torques about the vertical axis through point O, acting on the plate due to forces F₁, F₂, and F₃, is closest to

A 20.0-kg uniform plank is supported by the floor at one end and by a vertical rope at the other as shown in the figure. A 50.0-kg mass person stands on the plank a distance three-fourths of the length plank from the end on the floor. (a) What is the tension in the rope? (b) What is the magnitude of the force that the floor exerts on the plank?

A horizontal disk rotates about a vertical axis through its center. Point P is midway between the center and the rim of the disk, and point Q is on the rim. If the disk turns with constant angular velocity, which of the following statements about it are true? (There may be more than one correct choice.)

A 5.0-m long, 12-kg uniform ladder rests against a smooth vertical wall with the bottom of the ladder 3.0 m from the wall. The coefficient of static friction between the floor and the ladder is 0.28. What distance, measured along the ladder from the bottom, can a 60-kg person climb before the ladder starts to slip?

A uniform piece of wire, 20 cm long, is bent in a right angle in the center to give it an L-shape. How far from the bend is the center of mass of the bent wire?

A dumbbell-shaped object is composed by two equal masses, m, connected by a rod of negligible mass and length r. If I₁ is the moment of inertia of this object with respect to an axis passing through the center of the rod and perpendicular to it and I₂ is the moment of inertia with respect to an axis passing through one of the masses, it follows that

Three solid, uniform, cylindrical flywheels, each of mass 65.0 kg and radius 1.47 m rotate independently around a common axis. Two of the flywheels rotate in one direction at 3.83 rad/s; the other rotates in the opposite direction at 3.42 rad/s. Calculate the magnitude of the net angular momentum of the system.

A lawn roller in the form of a uniform solid cylinder is being pulled horizontally by a horizontal force B applied to an axle through the center of the roller, as shown in the figure. The roller has radius 0.65 meters and mass 51 kg and rolls without slipping. What magnitude of the force B is required to give the center of mass of the roller an acceleration of 2.8 m/s²?

The angular acceleration of a wheel is given in rad/s²by 45t³ - 11t⁴, where t is in seconds. If the wheel starts from rest at t = 0.00 s, when is the next time the wheel is at rest?

A 310-g air track cart is traveling at 1.25 m/s and a 260-g cart traveling in the opposite direction at 1.33 m/s. What is the speed of the center of mass of the two carts?

While spinning down from 500.0 rpm to rest, a solid uniform flywheel does of work. If the radius of the disk is What is its mass?

A long thin rod of length L has a linear density λ(x) = Ax where x is the distance from the left end of the rod. (a) How far is the center of mass of the rod from the left end of the rod? (b) What is the mass of the rod?

A uniform disk has a mass of 3.7 kg and a radius of 0.40 m. The disk is mounted on frictionless bearings and is used as a turntable. The turntable is initially rotating at 30 rpm. A thin-walled hollow cylinder has the same mass and radius as the disk. It is released from rest, just above the turntable, and on the same vertical axis. The hollow cylinder slips on the turntable for 0.20 s until it acquires the same final angular velocity as the turntable. What is the final angular momentum of the system?

A machinist turns the power on to a grinding wheel, which is at rest at time t = 0.00 s. The wheel accelerates uniformly for 10 s and reaches the operating angular velocity of 25 rad/s. The wheel is run at that angular velocity for 37 s and then power is shut off. The wheel decelerates uniformly at 1.5 rad/s² until the wheel stops. In this situation, the time interval of angular deceleration (slowing down) is closest to:

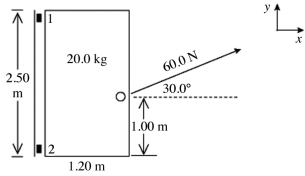

A 20.0-kg uniform door has a width of 1.20 m and a height of 2.50 m. The door is mounted on a post by a pair of hinges, marked 1 and 2 in the figure, at the top and bottom of the door. An external force of 60.0 N, at an angle of 30.0° above the horizontal, is applied to the small doorknob, as shown in the figure. The doorknob is 1.00 m above the bottom of the door. (a) Find the x component of the force that hinge 1 exerts on the door at the top. (b) Find the SUM of the y components of the forces that hinges 1 and 2 together exert on the door.

A 1.25-kg ball begins rolling from rest with constant angular acceleration down a hill. If it takes 3.60 s for it to make the first complete revolution, how long will it take to make the next complete revolution?

Consider a uniform solid sphere of radius R and mass M rolling without slipping. Which form of its kinetic energy is larger, translational or rotational?
