Exam 26: Magnetic Field and Magnetic Forces

An electron, moving toward the west, enters a uniform magnetic field. Because of this field the electron curves upward. The direction of the magnetic field is

A charged particle is moving with speed v perpendicular to a uniform magnetic field. A second identical charged particle is moving with speed 2v perpendicular to the same magnetic field. If the frequency of revolution of the first particle is f, the frequency of revolution of the second particle is

A uniform magnetic field of magnitude 0.80 T in the negative z-direction is present in a region of space, as shown in the figure. A uniform electric field is also present. An electron that is projected with an initial velocity v₀ = 9.1 × 10⁴ m/s in the positive x-direction passes through the region without deflection. What is the electric field vector in the region?

A beam of electrons is accelerated through a potential difference of 10 kV before entering a region having uniform electric and magnetic fields that are perpendicular to each other and perpendicular to the direction in which the electron is moving. If the magnetic field in this region has a value of 0.010 T, what magnitude of the electric field is required if the particles are to be undeflected as they pass through the region?

A circular coil of wire of 200 turns and diameter 2.0 cm carries a current of 4.0 A. It is placed in a magnetic field of with the plane of the coil making an angle of 30° with the magnetic field. What is the magnetic torque on the coil?

A round loop of diameter 12 cm, carrying a current of 0.40 A, is placed inside a magnetic field = 0.20 T î + 0.40 T ĵ. The normal to the loop is parallel to the unit vector = -0.60 î - 0.80 ĵ. What is the potential energy of the loop?

An electron enters a magnetic field of 0.75 T with a velocity perpendicular to the direction of the field. At what frequency does the electron traverse a circular path? (mel = 9.11 × 10^-31 kg, e = 1.60 × 10^-19 C)

A wire along the z-axis carries a current of 6.8 A in the +z direction. Find the magnitude and direction of the force exerted on a 6.1-cm long length of the wire by a uniform magnetic field with magnitude 0.36 T in the -x direction.

The figure shows a velocity selector that can be used to measure the speed of a charged particle. A beam of particles is directed along the axis of the instrument. A parallel plate capacitor sets up an electric field E, which is oriented perpendicular to a uniform magnetic field B. If the plates are separated by 2.0 mm and the value of the magnetic field is 0.60 T, what voltage between the plates will allow particles of speed 5.0 × 10⁵ m/s to pass straight through without deflection?

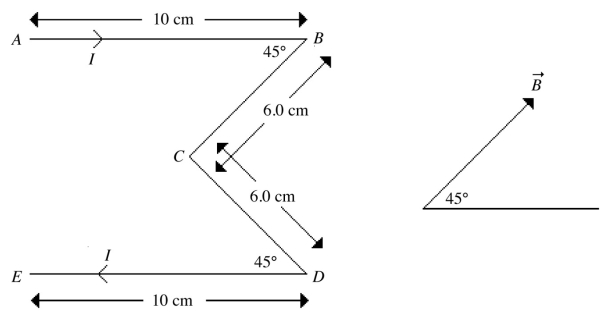

A wire in the shape of an "M" lies in the plane of the paper. It carries a current of 2.0 A, flowing from points A to E, as shown in the figure. It is placed in a uniform magnetic field of 0.75 T in the same plane, directed as shown on the right side of the figure. The figure indicates the dimensions of the wire. What are the magnitude and direction of the force acting on (a) section AB of this wire? (b) section BC of this wire? (c) section CD of this wire? (d) section DE of this wire? (e) the entire wire?

A proton, with mass 1.67 × 10^-27 kg and charge +1.6 × 10^-19 C, is sent with velocity 7.1 × 10⁴ m/s in the +x direction into a region where there is a uniform electric field of magnitude 730 V/m in the +y direction. What are the magnitude and direction of the uniform magnetic field in the region, if the proton is to pass through undeflected? Assume that the magnetic field has no x-component and neglect gravitational effects.

A wire segment 1.2 m long carries a current I = 3.5 A, and is oriented as shown in the figure. The +x-axis points directly into the page. A uniform magnetic field of magnitude 0.50 T pointing toward the -x direction is present as shown. What is the magnetic force vector on the wire segment?

A thin copper rod that is 1.0 m long and has a mass of 0.050 kg is in a magnetic field of 0.10 T. What minimum current in the rod is needed in order for the magnetic force to cancel the weight of the rod?

A 15-turn rectangular loop of wire of width 10 cm and length 20 cm has a current of 2.5 A flowing through it. Two sides of the loop are oriented parallel to a uniform magnetic field of strength 0.037 T, and the other two sides are perpendicular to the magnetic field. (a) What is the magnitude of the magnetic moment of the loop? (b) What torque does the magnetic field exert on the loop?

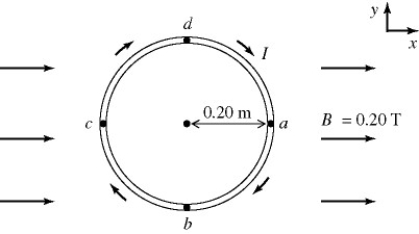

A rigid circular loop has a radius of 0.20 m and is in the xy-plane. A clockwise current I is carried by the loop, as shown. The magnitude of the magnetic moment of the loop is 0.75 A ∙ m². A uniform external magnetic field, B = 0.20 T in the positive x-direction, is present. An external torque changes the orientation of the loop from one of lowest potential energy to one of highest potential energy. The work done by this external torque is closest to

A wire segment 1.2 m long carries a current I = 3.5 A and is oriented as shown in the figure. A uniform magnetic field of magnitude 0.50 T pointing toward the -x direction is present as shown. The +z-axis points directly into the page. What is the magnetic force vector on the wire segment?

Ions having equal charges but masses of M and 2M are accelerated through the same potential difference and then enter a uniform magnetic field perpendicular to their path. If the heavier ions follow a circular arc of radius R, what is the radius of the arc followed by the lighter?

A wire carries a 4.0-A current along the +x-axis through a magnetic field = (5.0 î + 7.0 ĵ) T. If the wire experiences a force of 30 N As a result, how long is the wire?

A straight wire that is 0.60 m long is carrying a current of 2.0 A. It is placed in a uniform magnetic field of strength 0.30 T. If the wire experiences a force of 0.18 N, what angle does the wire make with respect to the magnetic field?

An electron moves with a speed of 8.0 × 10⁶ m/s along the +x-axis. It enters a region where there is a magnetic field of 2.5 T, directed at an angle of 60° to the +x-axis and lying in the xy-plane. (1 eV = 1.60 × 10^-19 C, ^mel = 9.11 × 10^-31 kg) Calculate the magnitude of (a) the magnetic force on the electron. (b) the acceleration of the electron.
