Exam 25: Current, Resistance, and Electromotive Force

Resonance: An ac source having a maximum voltage output of 30 V is connected in series with a 50-Ω resistor, a 0.60-H inductor, and a 20-µF capacitor. What is the maximum charge on the capacitor when the frequency of the source is adjusted so that the circuit is in resonance?

Resonance: A series LRC circuit consists of a 5.00-pF capacitor, a 7.25-mH inductor, a 75.0-Ω resistor, and a 50.0-V ac power source of variable frequency. At what frequency will the impedance of this circuit be equal to 75.0 Ω?

Power: A series LRC ac circuit has a peak current of 1.0 A with a frequency of 54 kHz. If the resistance of the circuit is 51 kΩ, the capacitance of the circuit is 19 μF, and the inductance of the circuit is 25 μH, determine the average power of the circuit.

Reactance: The inductor in a radio receiver carries a current of amplitude 200 mA when a voltage of amplitude 2.40 V is across it at a frequency of 1400 kHz. What is the value of the inductance?

Power: An ac series circuit consists of a voltage source of frequency 60 Hz and voltage amplitude V, a resistor, and a capacitor of capacitance What must be the source voltage amplitude V for the average electrical power consumed in the resistor to be 989 W? There is no inductance in the circuit.

Power: An LRC ac series circuit has R = 15 Ω, L = 25 mH, and C = 30 μF. The circuit is connected to a 120-V (rms) ac source with frequency 200 Hz. (a) What is the average power dissipated by the circuit? (b) What is the power factor for the circuit?

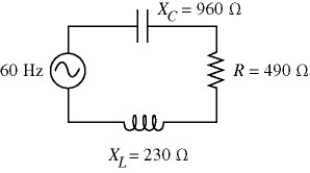

LRC series circuits: The 60-Hz ac source of a series circuit has a voltage amplitude of 120 V. The resistance, capacitive reactance, and inductive reactance are as shown in the figure. What is the rms current in the circuit?

LRC series circuits: An ac circuit is shown in the figure. The rms current in the circuit is measured to be 1.8 A. What is the capacitance of the capacitor?

Phase angle: A series LRC ac circuit has a resistance of 4.0 kΩ, a capacitance of 33.0 μF, and an inductance of 23.0 H. If the frequency of the alternating current is 2.0/π kHz, what is the phase angle between the voltage and the current?

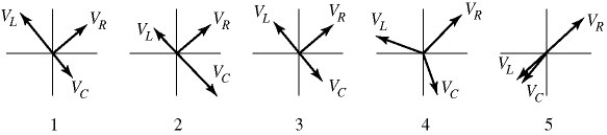

Resonance: Which one of the phasor diagrams shown below best represents a series LRC circuit driven at resonance?

Resonance: A series LRC circuit consists of a 12.0-mH inductor, a 15.0-µF capacitor, a resistor, and a 110-V (rms) ac voltage source. If the impedance of this circuit is 45.0 Ω at resonance, what is its impedance at a frequency twice the resonance frequency?

Phase angle: The phase angle of an LRC series circuit with a capacitive reactance of 40 Ω, a resistor of 100 Ω and a certain inductor at 1000 Hz is 40.0°. What is the value of the inductance in this circuit?

LRC series circuits: A series LRC circuit has a sinusoidal voltage supplied to it at with a peak voltage of a resistance, a capacitor, and a inductance. What is the peak current for this circuit?

Resonance: For an LRC series circuit containing a resistance of a capacitance of and an inductance of what frequency is needed to minimize the impedance?

Resonance: When an LRC series circuit is at resonance, which one of the following statements about that circuit is accurate? (There may be more than one correct choice.)

Power: A series circuit consists of a 50-Hz ac source, a 40-Ω resistor, a 0.30-H inductor, and a 60-μF capacitor. The rms current in the circuit is measured to be 1.6 A. What is the power factor of the circuit?

Reactance: If the voltage amplitude across an 8.50-nF capacitor is equal to 12.0 V when the current amplitude through it is 3.33 mA, the frequency is closest to

Phase angle: An LRC series circuit has voltage supplied to it at a frequency of 13.0 kHz with a phase difference between the current and the voltage of magnitude 0.20 rad. If the circuit has a capacitance of 5.0 μF and an inductance of 0.050 H find the resistance of the circuit.

LRC series circuits: A series circuit consists of a 50-Hz ac source, a 50-Ω resistor, a 0.50-H inductor, and a 60-μF capacitor. The rms current in the circuit is measured to be 3.1 A. What is the voltage amplitude of the source?

LRC series circuits: An LRC series circuit consists of an 85.0-Ω resistor, a 14.0-μF capacitor, a 1.50-mH inductor, and a variable frequency ac source of voltage amplitude 13.25 V. At what angular frequency will the inductive reactance be 4.00 times as large as the capacitive reactance?
