Exam 5: Applying Newtons Laws

Uniform circular motion: A string is attached to the rear-view mirror of a car. A ball is hanging at the other end of the string. The car is driving around in a circle, at a constant speed. Which of the following lists gives all of the forces directly acting on the ball?

Newton's second law: A box of mass 50 kg is at rest on a horizontal frictionless surface. A constant horizontal force F then acts on the box and accelerates it to the right. It is observed that it takes the box 6.9 seconds to travel 28 meters. What is the magnitude of the force?

Friction: A person is dragging a packing crate of mass 100 kg across a rough horizontal floor where the coefficient of kinetic friction is 0.400. He exerts a force F sufficient to accelerate the crate forward. At what angle above horizontal should his pulling force be directed in order to achieve the maximum acceleration?

General questions: Point P in the figure indicates the position of an object traveling at constant speed clockwise around the circle. Which arrow best represent the direction the object would travel if the net external force on it were suddenly reduced to zero?

Newton's second law: A construction worker pulls a box of tools on a smooth horizontal floor with a force of 100 N in a direction of 37.0° above the horizontal. The mass of the box and the tools is 40.0 kg. (a) Draw a free-body diagram for the box. (b) Calculate the acceleration of the box. (c) How hard does the floor push up on the box?

Slanted surfaces with friction: A 200 g hockey puck is launched up a metal ramp that is inclined at a 30° angle. The coefficients of static and kinetic friction between the hockey puck and the metal ramp are μ_s = 0.40 and μ_k = 0.30, respectively. The puck's initial speed is 4.9 m/s. What speed does it have when it slides back down to its starting point?

Equilibrium: The figure shows two forces, each of magnitude 4.6 N, acting on an object. The angle between these forces is 40°, and they make equal angles above and below the horizontal. What third force will cause the object to be in equilibrium (acceleration equals zero)?

Uniform circular motion: A person on a sled coasts down a hill and then goes over a slight rise with speed 2.7 m/s. The top of this rise can be modeled as a circle of radius 4.1 m. The sled and occupant have a combined mass of 110 kg. If the coefficient of kinetic friction between the snow and the sled is 0.10, what friction force is exerted on the sled by the snow as the sled goes over the top of the rise?

Uniform circular motion: Future space stations will create an artificial gravity by rotating. Consider a cylindrical space station 390 m diameter rotating about its central axis. Astronauts walk on the inside surface of the space station. What rotation period will provide "normal" gravity?

Uniform circular motion: A 1000-kg car is slowly picking up speed as it goes around a horizontal curve whose radius is 100 m. The coefficient of static friction between the tires and the road is 0.350. At what speed will the car begin to skid sideways?

General questions: A 615 N student standing on a scale in an elevator notices that the scale reads 645 N. From this information, the student knows that the elevator must be moving

Friction: A 4.00-kg block rests between the floor and a 3.00-kg block as shown in the figure. The 3.00-kg block is tied to a wall by a horizontal rope. If the coefficient of static friction is 0.800 between each pair of surfaces in contact, what horizontal force F must be applied to the 4.00-kg block to make it move?

Slanted surfaces with friction: A crate is sliding down an inclined ramp at a constant speed of 0.55 m/s. The vector sum of all the forces acting on this crate must point down the ramp.

Uniform circular motion: A roadway for stunt drivers is designed for racecars moving at a speed of 40 m/s. A curved section of the roadway is a circular arc of 230 m radius. The roadway is banked so that a vehicle can go around the curve with the friction force from the road equal to zero. At what angle is the roadway banked?

Slanted surfaces with friction: In the figure, a T-bar ski tow pulls a skier up a hill inclined at 10° above horizontal. The skier starts from rest and is pulled by a cable that exerts a tension T at an angle of 30° above the surface of the hill. The mass of the skier is 60 kg and the effective coefficient of kinetic friction between the skis and the snow is 0.100. What is the maximum tension in the cable if the starting acceleration is not to exceed 0.400 g?

Newton's second law: A 60.0-kg person rides in elevator while standing on a scale. The elevator is traveling downward but slowing down at a rate of 2.00 m/s². The reading on the scale is closest to

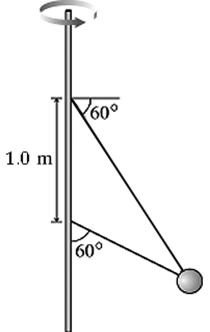

Uniform circular motion: The figure shows two wires tied to a 3.3 kg sphere that revolves in a horizontal circle at constant speed. At this particular speed the tension is the SAME in both wires. What is the tension?

Air resistance: When a parachutist jumps from an airplane, he eventually reaches a constant speed, called the terminal speed. Once he has reached terminal speed

Equilibrium: The figure shows two forces acting at right angles on an object. They have magnitudes = 6.3 N and = 2.1 N. What third force will cause the object to be in equilibrium (acceleration equals zero)?

Banked curves: A 600-kg car traveling at 24.5 m/s is going around a curve having a radius of 120 m that is banked at an angle of 20°. (a) Is the curve properly banked for the car's speed? (b) What is the minimum coefficient of static friction required between the road and the car's tires so the car does not skid?
