Exam 18: Implementing Cisco Application Centric Infrastructure (DCACI)

A user reports that they cannot reach from a UCS server to an FC Storage array. Which command is used to test communication between an FCF and a target?

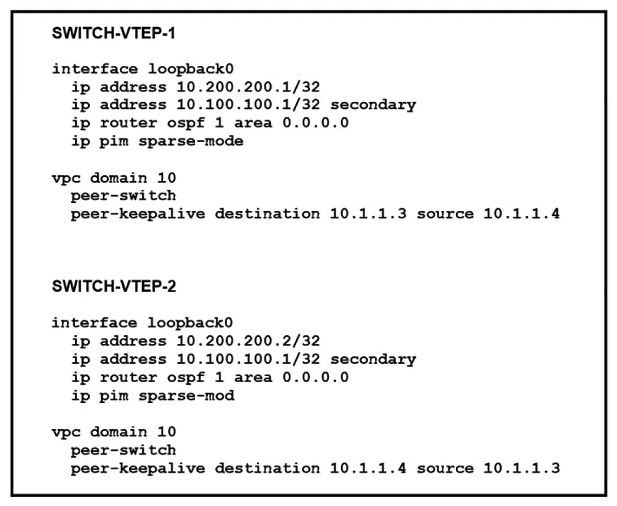

Refer to the exhibit. One of the vPC VTEPs fails to route VXLAN traffic to vPC connected hosts. When the issue was being diagnosed, it was discovered that the packets that were expected to be forwarded to the MAC address on the SWITCH-VTEP-1 are instead forwarded to the MAC address on SWITCH-VTEP-2 and then dropped. Which action resolves the issue?

Refer to the exhibit. A functioning trunk port Ethernet1/48 exists between two identical Cisco Nexus 5000 Series Switches. The interfaces on the switches support the MACsec feature and are configured identically. To enable manual MACsec, an engineer adds the configuration shown in the exhibit to both sides of the trunk. The trunk port stops functioning. Which action should be taken to resolve the issue?

Refer to the exhibit. Sw1 and Sw2 are Cisco Nexus 9000 Series Switches that run Cisco NX-OS. They are VTEPs in the same vPC domain. What occurs in this scenario?

Refer to the exhibit. Cisco UCS Manager is upgraded using the Auto Install feature, but the FSM fails. Which action resolves the issue?

Refer to the exhibit. An engineer is performing a health check on ACI. Which statement about interface Ethernet 1/11 is true?

Refer to the exhibit. An engineer troubleshoots why user 1, user 2, and user 3 from the group STORAGE-ADMINISTRATOR in Microsoft Active Directory cannot log in to the Cisco MDS SSH CLI. Which action resolves the issue?

Refer to the exhibit. An OSPF adjacency between Router-A and Router-B fails to reach the FULL state. Which action resolves the issue?

An engineer removes a VMM domain from an endpoint group called EPG-1, but the distributed port group fails to be deleted. Which action must be taken to resolve the issue?

A Cisco UCS B-Series Blade Server is configured to boot a VMware ESXi host from an EMC VNX storage array by using a Fibre Channel SAN. The boot order is confirmed to be configured as expected, but the server fails to boot from the SAN. Which action resolves the problem?

An engineer must upgrade all components in a Cisco UCS domain to the same package version, but the upgrade process fails to complete. Which set of Auto Install actions resolves the problem?

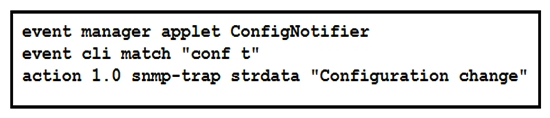

Refer to the exhibit. A network engineer creates an EEM script to trigger an SNMP notification when a user enters configuration mode, but the trap is not received when the condition is met. Which action resolves the issue?

An engineer removes a VMM domain from an endpoint group called "EPG-1", but the distributed port group fails to be deleted. Which action resolves the issue?

A network engineer discovers a DNS resolution problem on a device that is using the Cisco Nexus Bash shell. The device name is app with an IP address of 10.10.10.1. The primary server IP address is 172.16.10.1 and the secondary server IP address is 172.16.10.2. When the abc.com resolution fails, it should attempt to use efg.com. Which settings must be added to resolv.conf file to resolve the issue?

An attempt to use a global vNIC redundancy template pair results in a service profile that fails to apply. Which action resolves the issues?

Refer to the exhibit. During implementation of a Cisco UCS C-Series Server, an engineer receives the status that is shown in the exhibit. Which action resolves the issue?

Refer to the exhibit. An engineer must connect N2K-Fex-1 and N5K-Core-1 so that the traffic flow between the two devices uses load balancing. After inspecting the statistics of the interconnecting interfaces, the engineer concludes that only one link is used. Which action resolves the problem?

Refer to the exhibit. The HSRP instance on both switches is showing as active. Which action resolves the issue?

Refer to the exhibit. After the configuration is performed, guestshell continues to use 2%CPU. Which action resolves the issue?

Refer to the exhibit. Partial configuration from N9K-1 and N9K-2 is included. The client has two WANs connected. WAN-1 is for normal business-day activities. WAN-2 is for server backups during nonworking hours of 1:00 a.m. to 5:00 a.m. daily. The client says that at the scheduled time for backup, the data center server failed to use the WAN-2 link to back up the servers to the cloud backup system. What is the solution to this problem?
