Exam 5: Applying Newtons Laws

Multiple-object systems without friction: A series of weights connected by very light cords are given an upward acceleration of 4.00 m/s² by a pull P, as shown in the figure. A, B, and C are the tensions in the connecting cords. The SMALLEST of the three tensions, A, B, and C, is closest to

Air resistance: A 30.0-kg object experiences a drag force due to air resistance with a magnitude proportional to the square of its speed. The object falls with an acceleration of 4.00 m/s² downward when it is falling downward at 70.0 m/s. What is its terminal speed?

General questions: A box of mass m is pulled with a constant acceleration a along a horizontal frictionless floor by a wire that makes an angle of 15° above the horizontal. If T is the tension in this wire, then

Equilibrium: A 1520-N crate is to be held in place on a ramp that rises at 30.0° above the horizontal (see figure). The massless rope attached to the crate makes a 22.0° angle above the surface of the ramp. The coefficients of friction between the crate and the surface of the ramp are µ_k = 0.450 and µ_s = 0.650. The pulley has no appreciable mass or friction. What is the MAXIMUM weight w that can be used to hold this crate stationary on the ramp?

Slanted surfaces without friction: Two objects have masses m and 5m, respectively. They both are placed side by side on a frictionless inclined plane and allowed to slide down from rest.

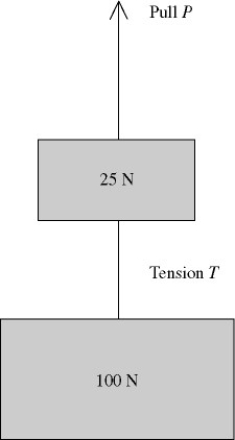

Equilibrium: Two weights are connected by a massless wire and pulled upward with a constant speed of 1.50 m/s by a vertical pull P. The tension in the wire is T (see figure). P is closest to

Multiple-object systems without friction: The figure shows two 1.0 kg-blocks connected by a rope. A second rope hangs beneath the lower block. Both ropes have a mass of 250 g. The entire assembly is accelerated upward at 2.3 m/s² by force . What is the tension at the top end of rope 1?

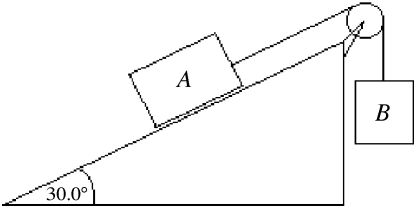

Slanted surfaces with friction: Two blocks are connected by a string that goes over an ideal pulley as shown in the figure. Block A has a mass of 3.00 kg and can slide over a rough plane inclined 30.0° to the horizontal. The coefficient of kinetic friction between block A and the plane is 0.400. Block B has a mass of 2.77 kg. What is the acceleration of the blocks?

Friction: A driver in a car traveling at slams on the brakes and skids to a stop. If the coefficient of friction between the tires and the horizontal road is 0.80, how long will the skid marks be?

Air resistance: The magnitude of the drag force of air resistance on a certain 20.0-kg object is proportional to its speed. If the object has a terminal speed 80.0 m/s, what is the magnitude of the drag force on the object when it is falling with a speed 30.0 m/s?

Newton's second law: A 50.0-N box is sliding on a rough horizontal floor, and the only horizontal force acting on it is friction. You observe that at one instant the box is sliding to the right at 1.75 m/s and that it stops in 2.25 s with uniform acceleration. What magnitude force does friction exert on this box?

General questions: You are standing in a moving bus, facing forward, and you suddenly fall forward as the bus comes to an immediate stop. The force acting on you that causes you to fall forward is

Newton's second law: An 1100-kg car traveling at 27.0 m/s starts to slow down and comes to a complete stop in 578 m. What is the magnitude of the average braking force acting on the car?

Newton's second law: Two forces act on a object. One force has magnitude 65 N directed 59° clockwise from the positive x-axis, and the other has a magnitude 35 N at 32° clockwise from the positive y-axis. What is the magnitude of this object's acceleration?

General questions: A car is being towed at constant velocity on a horizontal road using a horizontal chain. The tension in the chain must be equal to the weight of the car in order to maintain constant velocity.

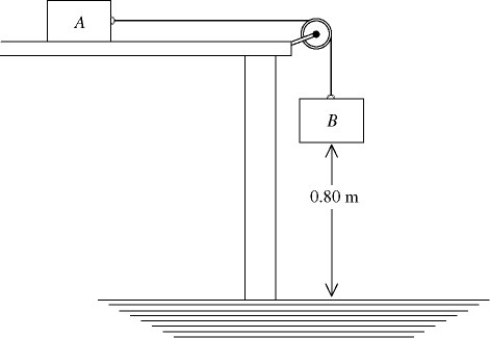

Multiple-object systems with friction: In the figure, two wooden blocks each of 0.30 kg mass are connected by a string that passes over a very light frictionless pulley. One block slides on a horizontal table, while the other hangs suspended by the string, as shown in the figure. At time t = 0, the suspended block is 0.80 m over the floor, and the blocks are released from rest. After 2.5 s, the suspended block reaches the floor. What is the coefficient of kinetic friction between the table and the sliding block?

Newton's second law: A locomotive is pulling 19 freight cars, each of which is loaded with the same amount of weight. The mass of each freight car (with its load) is 37,000 kg. If the train is accelerating at on a level track, what is the tension in the coupling between the second and third cars? (The car nearest the locomotive is counted as the first car, and friction is negligible.)

General questions: A 20-tonne truck collides with a 1500-kg car and causes a lot of damage to the car. During the collision

Slanted surfaces without friction: A block is given a very brief push up a 20.0° frictionless incline to give it an initial speed of 12.0 m/s. (a) How far along the surface of the plane does the block slide before coming to rest? (b) How much time does it take to return to its starting position?

Multiple-object systems without friction: A 20.0-N box rests on a 50.0-N box on a perfectly smooth horizontal floor. When a horizontal 15.0-N pull to the right is exerted on the lower box (see figure), both boxes move together. Find the magnitude and direction of the net external force on the upper box.
