Question 1

Refer to the exhibit.   What is the reason the system-fm-vrrp checkpoint was created?

Accepted Answer

A)  The VRRP process crashed and the checkpoint was automatically created.
B)  The VRRP service restarted and the checkpoint was automatically created.
C)  The network administrator manually created it.
D)  The VRRP-enabled feature has been disabled.
A)  The VRRP process crashed and the checkpoint was automatically created.
B)  The VRRP service restarted and the checkpoint was automatically created.
C)  The network administrator manually created it.
D)  The VRRP-enabled feature has been disabled.

Question 2

An engineer must ensure fabric redundancy when implementing NPV mode on a Cisco MDS 9000 Series Switch. Which action enables fabric redundancy?

Accepted Answer

A)  Use TE ports to connect to upstream switches.
B)  Add a port channel to upstream switches.
C)  Configure the NPV devices to use an external FLOGI database.
D)  Connect the NPV devices to multiple upstream switches.
A)  Use TE ports to connect to upstream switches.
B)  Add a port channel to upstream switches.
C)  Configure the NPV devices to use an external FLOGI database.
D)  Connect the NPV devices to multiple upstream switches.

Question 3

APIC EPG Resolution Immediacy is set to "Immediate". Which statement is true about the Deployment Immediacy for VMM domains associated to EPGs?

Accepted Answer

A)  If "On demand" is selected, the policy is programmed in the hardware only when the first packet is received through the data path.
B)  If "Immediate" is selected, the policy is programmed in the hardware as soon as the leaf is booted.
C)  The "Immediate" and "On demand" options require a port group to be created on the VDS.
D)  If "On demand" is selected, the policy is programmed in the hardware only when the APIC detects a VM created in the EPG.
A)  If "On demand" is selected, the policy is programmed in the hardware only when the first packet is received through the data path.
B)  If "Immediate" is selected, the policy is programmed in the hardware as soon as the leaf is booted.
C)  The "Immediate" and "On demand" options require a port group to be created on the VDS.
D)  If "On demand" is selected, the policy is programmed in the hardware only when the APIC detects a VM created in the EPG.

Question 4

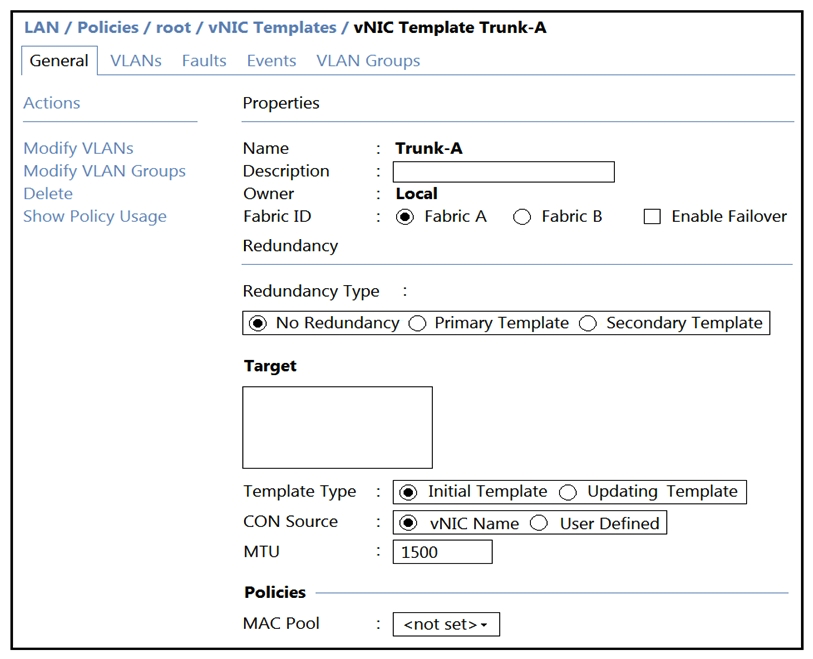

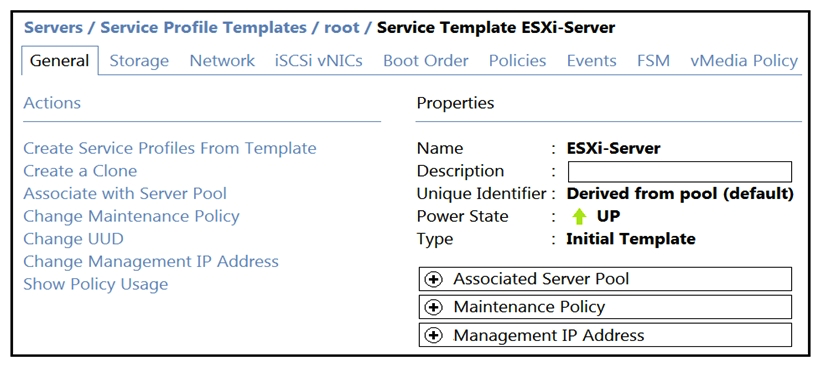

Refer to the exhibits. ESXi-Server is associated to the blade server. A VLAN is added to Trunk-A. The VLAN is missing on the vNIC of ESXi-Server. Which action should be taken to add the VLAN to the vNIC?

Accepted Answer

A)  Change the template type of Trunk-A to an updating template.
B)  Remove the VLAN from the Trunk-A template and add the VLAN again.
C)  Change the template type of ESXi-Server to an updating template.
D)  Remove both templates and recreate them as updating templates.
A)  Change the template type of Trunk-A to an updating template.
B)  Remove the VLAN from the Trunk-A template and add the VLAN again.
C)  Change the template type of ESXi-Server to an updating template.
D)  Remove both templates and recreate them as updating templates.

Question 5

After a Cisco Nexus 7000 Series Switch chassis replacement, the administrator discovers that all vPC-enabled LACP port channels are reinitialized. The administrator wants to prevent this issue the next time the chassis is replaced. Which two actions must be taken to meet this requirement before the isolated device is reloaded? (Choose two.)

Accepted Answer

A)  Change the vPC system-priority of the replacement chassis to a higher value than the peer
B)  Set the vPC MAC address to a higher value than the peer
C)  Configure auto-recovery to the disable state on both peers
D)  Set the vPC MAC address to a lower value than the peer
E)  Change the vPC system-priority of the replacement chassis to a lower value than the peer
A)  Change the vPC system-priority of the replacement chassis to a higher value than the peer
B)  Set the vPC MAC address to a higher value than the peer
C)  Configure auto-recovery to the disable state on both peers
D)  Set the vPC MAC address to a lower value than the peer
E)  Change the vPC system-priority of the replacement chassis to a lower value than the peer

Question 6

An engineer enters these commands while in EEM on a Cisco Nexus 9000 Series Switch event manager applet Backup-config event timer watchdog time 1800 name timer event cli match "copy running-config startup-config" What is the result of applying this configuration?

Accepted Answer

A)  It generates an error because no action is mentioned.
B)  It executes the copy running-config startup-confing command. It executes the copy running-config startup-confing command.
C)  It saves the running configuration every 1800 seconds.
D)  It blocks the copy running-config startup-config command. It blocks the copy running-config startup-config
A)  It generates an error because no action is mentioned.
B)  It executes the copy running-config startup-confing command. It executes the copy running-config startup-confing command.
C)  It saves the running configuration every 1800 seconds.
D)  It blocks the copy running-config startup-config command. It blocks the copy running-config startup-config

Question 7

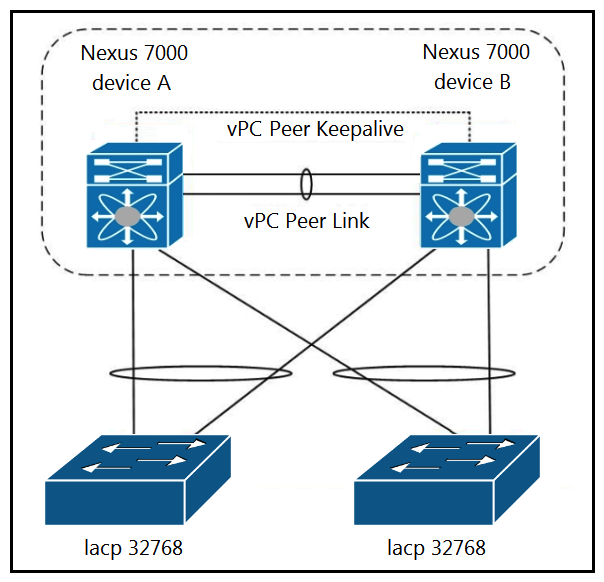

Refer to the exhibit. Which configuration ensures that the Cisco Nexus 7000 Series Switches are the primary devices for LACP?

Accepted Answer

A)  N7K_A(config-vpc-domain)# role priority 1 N7K_B(config-vpc-domain )# role priority 2 N7K_A(config-vpc-domain)# role priority 1 N7K_B(config-vpc-domain )# role priority 2
B)  N7K_A(config-vpc-domain)# system-priority 32768 N7K_B(config-vpc-domain)# system-priority 32768 system-priority 32768 N7K_B(config-vpc-domain)#
C)  N7K_A(config-vpc-domain)# system-priority 100 N7K_B(config-vpc-domain)# system-priority 200 system-priority 100 system-priority 200
D)  N7K_A(config-vpc-domain)# system-priority 4000 N7K_B(config-vpc-domain)# system-priority 4000 system-priority 4000
A)  N7K_A(config-vpc-domain)# role priority 1 N7K_B(config-vpc-domain )# role priority 2 N7K_A(config-vpc-domain)# role priority 1 N7K_B(config-vpc-domain )# role priority 2
B)  N7K_A(config-vpc-domain)# system-priority 32768 N7K_B(config-vpc-domain)# system-priority 32768 system-priority 32768 N7K_B(config-vpc-domain)#
C)  N7K_A(config-vpc-domain)# system-priority 100 N7K_B(config-vpc-domain)# system-priority 200 system-priority 100 system-priority 200
D)  N7K_A(config-vpc-domain)# system-priority 4000 N7K_B(config-vpc-domain)# system-priority 4000 system-priority 4000

Question 8

Refer to the exhibit.   Which action must be taken before the maintenance policy can be committed?

Accepted Answer

A)  Specify a maintenance time by selecting a schedule.
B)  Associate a service profile to the maintenance policy.
C)  Set the soft shutdown timer to a specific time.
D)  Set the policy to apply the changes on the next reboot.
A)  Specify a maintenance time by selecting a schedule.
B)  Associate a service profile to the maintenance policy.
C)  Set the soft shutdown timer to a specific time.
D)  Set the policy to apply the changes on the next reboot.
