Question 1

The following type of buffer does not add time to a schedule:

Accepted Answer

A)  Milestone
B)  Feeding
C)  Project
D)  Resource
E)  None of the above
A)  Milestone
B)  Feeding
C)  Project
D)  Resource
E)  None of the above D

Question 2

If a = 3, m = 5, and b = 6, then:

Accepted Answer

A)  te = 4.667 and V = 1.5
B)  te = 4.833 and V = 0.5
C)  neither
A)  te = 4.667 and V = 1.5
B)  te = 4.833 and V = 0.5
C)  neither C

Question 3

GERT (circle all that are true):

Accepted Answer

A)  utilizes branching nodes
B)  like PERT, cannot repeat activities
C)  unlike PERT/CPM, allows for multiple possible outcomes in a project
D)  like CPM, activity duration estimates are restricted to a single, deterministic estimate
A)  utilizes branching nodes
B)  like PERT, cannot repeat activities
C)  unlike PERT/CPM, allows for multiple possible outcomes in a project
D)  like CPM, activity duration estimates are restricted to a single, deterministic estimate A, C

Question 4

Resource buffers are always placed:

Accepted Answer

A)  on the critical chain only
B)  on both critical and on non-critical paths
C)  where non-critical paths merge into the critical chain
D)  at the end of the critical chain
E)  at places where a "count down" to the start of a non-critical activity is needed.
A)  on the critical chain only
B)  on both critical and on non-critical paths
C)  where non-critical paths merge into the critical chain
D)  at the end of the critical chain
E)  at places where a "count down" to the start of a non-critical activity is needed.

Question 5

Statement: The cost slope is the marginal tradeoff between the cost and time of doing a given activity.

Accepted Answer

A) True
 B)False

Question 6

Statement: Given the assumptions of PERT, it is possible to determine the probability that a project will be completed by a specified date.

Accepted Answer

A) True
 B)False

Question 7

To reduce the duration of a project using CPM, it is necessary to make a reduction on the activity with:

Accepted Answer

A)  the largest cost slope on the critical path (CP)
B)  the smallest cost slope on the CP
C)  the largest cost slope not on the CP
D)  the smallest cost slope not on the CP
A)  the largest cost slope on the critical path (CP)
B)  the smallest cost slope on the CP
C)  the largest cost slope not on the CP
D)  the smallest cost slope not on the CP

Question 8

Statement: In the critical path method (CPM), the direct cost of an activity is assumed to be proportional to its time, so shortening it to its "crash" time reduces its cost.

Accepted Answer

A) True
 B)False

Question 9

Statement: It is relatively easy to level many resources in a project at the same time.

Accepted Answer

A) True
 B)False

Question 10

To find the shortest possible project duration for the least cost:

Accepted Answer

A)  crash all activities on the critical path (CP), then relax all non-CP activities
B)  crash all activities not on the CP, then relax all critical activities
C)  crash all activities in the project, then relax those not on the CP
D)  crash all activities in the project, then relax those on the critical path
A)  crash all activities on the critical path (CP), then relax all non-CP activities
B)  crash all activities not on the CP, then relax all critical activities
C)  crash all activities in the project, then relax those not on the CP
D)  crash all activities in the project, then relax those on the critical path

Question 11

Statement: Although the times used in PERT are "estimates," the resulting probabilities are highly credible, especially in cases where little or no previous experience exists.

Accepted Answer

A) True
 B)False

Question 12

The Following Questions adapted from tutorial material of H Steyn Ed., Project Management -A Multi-disciplinary Approach (Pretoria: FPM Publishing, 2003). Reprinted with permission.

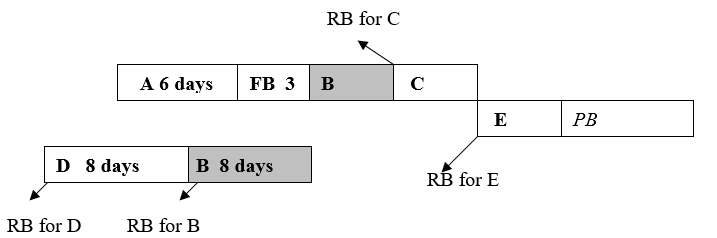

-Consider the schedule below:
RB = Resource Buffer
FB = Feeding Buffer
PB = Project Buffer
The letters A, B, C, D and E represent the resources needed to do the indicated activities.

(a) Show the critical chain on the sketch above.
(b) Why is there no resource buffer (RB) before the activity to be performed by A?
(c) Why is there no resource buffer before the second task to be performed by resource B?
(d) Would the 6-day duration shown for the activity to be performed by A be a pessimistic or a realistic value?

Accepted Answer

The answer of The Following Questions adapted from tutorial material...

Question 13

An approach to accelerate a project by simply eliminating discretionary dependencies is called:

Accepted Answer

A)  Crashing
B)  Concurrent engineering
C)  Critical chain scheduling
D)  Fast tracking
E)  PERT/CPM
A)  Crashing
B)  Concurrent engineering
C)  Critical chain scheduling
D)  Fast tracking
E)  PERT/CPM

Question 14

Statement: Indirect costs include administrative, overhead, and any penalty costs.

Accepted Answer

A) True
 B)False

Question 15

Which statement is correct. The critical chain method:

Accepted Answer

A)  helps planners to estimate the duration of activities more accurately.
B)  stresses that, in order to finish the project on the project deadline (due date), all critical activities must be finished by their individual deadlines (due dates).
C)  forces a person working on an activity to commit to when he/she will finish the work.
D)  ensures that sufficient contingency reserve is built into the schedule of each individual activity.
E)  None of the above is correct.
A)  helps planners to estimate the duration of activities more accurately.
B)  stresses that, in order to finish the project on the project deadline (due date), all critical activities must be finished by their individual deadlines (due dates).
C)  forces a person working on an activity to commit to when he/she will finish the work.
D)  ensures that sufficient contingency reserve is built into the schedule of each individual activity.
E)  None of the above is correct.

Question 16

The Following Questions adapted from tutorial material of H Steyn Ed., Project Management -A Multi-disciplinary Approach (Pretoria: FPM Publishing, 2003). Reprinted with permission.
-Complete the following table: state how the five steps of constraints management relate to the management of a single project when the critical chain method is used.
 $$\begin{array} { | l | l | }
\hline \begin{array} { l }
\text { Constraints } \
\text { management step }
\end{array} & \text { Application to management of a (single) project } \
\hline \text { 1. Identify the constraint } & \
\hline \begin{array} { l }
\text { 2. Decide how to exploit } \
\text { the constraint(s) }
\end{array} & \
\hline \begin{array} { l }
\text { 3. Subordinate everything } \
\text { to the decision(s) in } 2 \
\text { above }
\end{array} & \
\hline \begin{array} { l }
\text { 4. Elevate the } \
\text { constraint(s) (in other } \
\text { words, take steps to } \
\text { "widen the bottleneck") }
\end{array} & \
\hline \begin{array} { l }
\text { 5. Go back to Step 1. }
\end{array} \
\hline
\end{array}$$

Accepted Answer

The answer of The Following Questions adapted from tutorial material...

Question 17

Statement: PERT requires three time estimates for every activity.

Accepted Answer

A) True
 B)False

Question 18

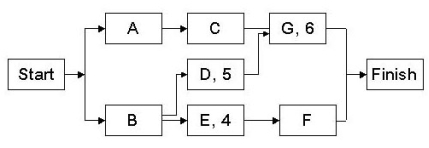

Use the following network diagram and table to answer parts (a) through (d).

 $$\begin{array} { c | r r | c c }
\text {  } & \text { Normal } && \text { Crash }\
\text { Activity } & \text { Time } & \text { Cost } & \text { Time } & \text { Cost } \
\hline \text { A } & 6 & 100 & 3 & 400 \
\text { B } & 8 & 200 & 8 & 200 \
\text { C } & 4 & 200 & 2 & 800 \
\text { D } & 10 & 1000 & 5 & 4000 \
\text { E } & 8 & 200 & 4 & 1000 \
\text { F } & 10 & 1500 & 6 & 4500 \
\text { G } & 8 & 800 & 5 & 1000 \
\hline
\end{array}$$
(a) Under "normal" conditions: what is the earliest the project can be completed; what is the critical path; what is the cost?
(b) Suppose you wanted to complete the project one week earlier than under normal conditions. What activity(ies) would you have to speed up. How much would it add to the cost of the project?
(c) Under "crash" conditions: what is the earliest the project can be completed; what is the minimum it will cost to complete it in this time.
(d) The costs in part (a) through (d) are direct costs. Suppose overhead costs are determined by the formula C = 4000 + 2000t, where t is the project duration in weeks. Using this formula, what are the total project costs (direct plus indirect) for the project durations you got in parts (a) and (d)? Based on a cost comparison, should the project be completed under normal conditions, crash conditions, or somewhere in between?

Accepted Answer

The answer of Use the following network diagram and table...

Question 19

Statement: A "resource loading" chart shows the amount of a given resource required in a project over a specified period of time.

Accepted Answer

A) True
 B)False

Question 20

Which statement is correct: In the CPM, as the duration of a project is decreased, usually:

Accepted Answer

A)  so are both its direct and indirect costs
B)  direct costs increase, but indirect costs decrease
C)  both direct and indirect costs increase
D)  direct costs decrease, indirect costs increase
A)  so are both its direct and indirect costs
B)  direct costs increase, but indirect costs decrease
C)  both direct and indirect costs increase
D)  direct costs decrease, indirect costs increase
