Exam 44: Deploying Cisco Unified Contact Center Express

In a network design using carrier Ethernet, which three mechanisms can be used to improve Layer 2 down detection and thereby reduce routing convergence time? (Choose three.)

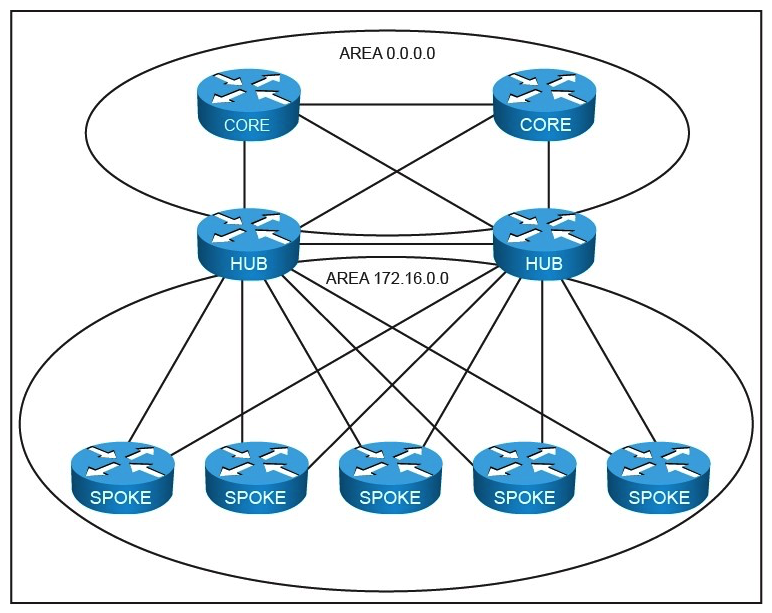

Refer to the exhibit. Which single design aspect should be configured on the ABRs to reduce the impact of WAN upgrades for spoke routers on the core of the network?

An IBGP mesh design is being scoped, and in the discussions, one of the design engineers proposes the use of route reflectors. Which limitation is valid when using route reflectors in this design?

Which description is true about RSVP reservations?

VPLS is implemented in a Layer 2 network with 2000 VLANs. What is the primary concern to ensure successful deployment of VPLS?

Which two benefits are of protecting the control plane of a network device? (Choose two.)

Which VPN management feature would be considered to ensure that the network had the least disruption of service when making topology changes?

Which description is true about downstream suppression?

Acme Corporation wants to minimize the risk of users plugging unauthorized switches and hubs into the network. Which two features can be used on the LAN access ports to support this design requirement? (Choose two.)

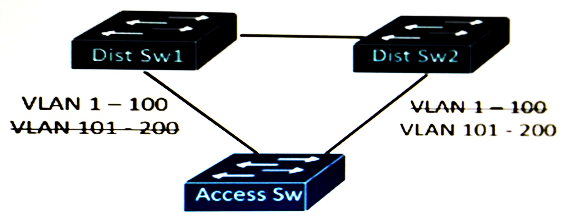

Refer to the exhibit. This Layer 2 network is expected to add 150 VLANs over the next year, in addition to the existing 50 VLANs within the network. Which STP type will support this design requirement using the least amount of CPU resources and achieving load-balancing?

During a network design review, it is recommended that the network with a single large area should be broken up into a backbone and multiple nonbackbone areas. There are differing opinions on how many ABRs are needed for each area for redundancy. What would be the impact of having additional ABRs per area?

Which mechanism should be added to a network design to identify unidirectional Spanning Tree Protocol failures through BPDU loss?

EIGRP performs route summarization at the interface level with the ip summary-address command. Which three statements correctly describe EIGRP route summarization? (Choose three.)

Which two OSPF design considerations should you implement to support the eventual growth of a network, so that CPU and memory are unaffected by the size and complexity of the link-state database in a large service provider network? (Choose two.)

In a redesign of a multiple-area network, it is recommended that summarization is to be implemented. For redundancy requirements, summarization is done at multiple locations for each summary. Some customers now complain of higher latency and performance issues for a server hosted in the summarized area. What design issues should be considered when creating the summarization?

When designing a network, which method can be used to control the exit point for traffic leaving an autonomous system, at the Layer 3 control plane?

Which three network management requirements are common practices in a network design? (Choose three.)

A switched network is being deployed on a factory floor. Due to cost constraints, fiber-based connectivity is not an option. Which design allows for a stable network when there is a risk of interference from the manufacturing hardware in use on the factory floor?

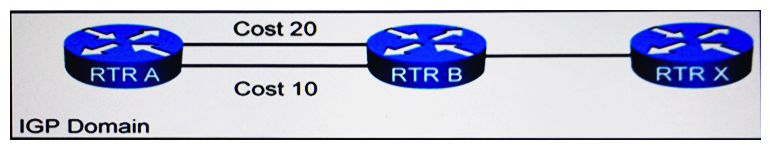

Refer to the exhibit. Router A must reach Router X. Which option describes how router A decides which interface to use to forward packets?

A virtual storage area network (VSAN) is a collection of ports from a set of connected Fibre Channel switches, that form a virtual fabric. Which technology allows centralized storage services to be shared across different VSANs?
